XRJB-A60-1-D12-170 modular rj45 connectors 10/100Mbps Magnetic

China XRJB-A60-1-D12-170 modular rj45 connectors 10/100Mbps Magnetic supplier

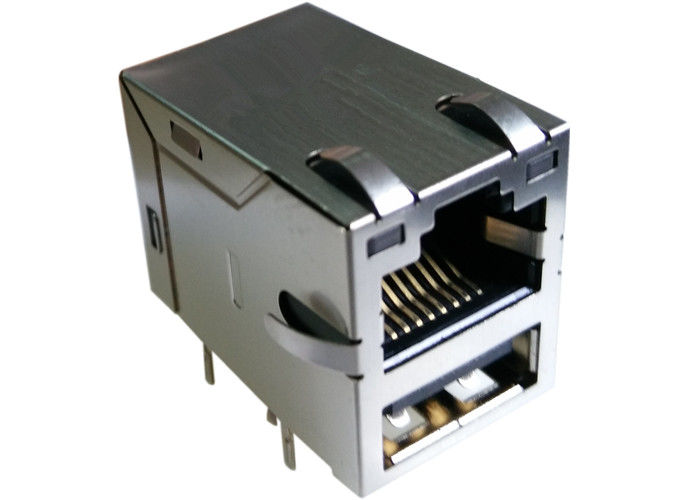

Large Image :  XRJB-A60-1-D12-170 modular rj45 connectors 10/100Mbps Magnetic

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: XRJB-A60-1-D12-170

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: $1.25↑
Packaging Details: 50 pcs in 1 tray,20tray in 1 carton, which is 37*30*30 cm, 10KGS (1000 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: XRJB-A60-1-D12-170 Mass Production: LPJU3134AGNL
Original Munafactuer: LINK-PP Application: 10/100 Base-T
Termination: Solder LEDs: Optional
IC Match: ATSAM3S1CB-CUR Mount Style: DIP / Side Entry


XRJB-A60-1-D12-170 modular rj45 connectors 10/100Mbps Magnetic

Quick Details

Rj45+USB W/LED W/Filter 10/100Mbps 8P 6C Shielded Thru-Hole

1.RoHS “NL” peak solder rating 260°C
2.Low height and small footprint to minimize board space

3.Meets IEEE 802.3 specification
4.350µH minimum OCL with 8mA bias current
5.High performance for maximum EMI suppression

6.Designing Model: 【XRJB-A60-1-D12-170

7.Mass Production Model:【LPJU3134AGNL


LED optional ; EMI-finger Optional.


Rj45+USB W/LED W/Filter 10/100Mbps 8P 6C Shielded Thru-Hole, Meeting IEEE 802.3/ af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85


     1500Vrms MIN


Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



Competitive Advantage


18 years production experience,

2600 staff,

100% test

Flexible delivery time


Main Customer


Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application


Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
