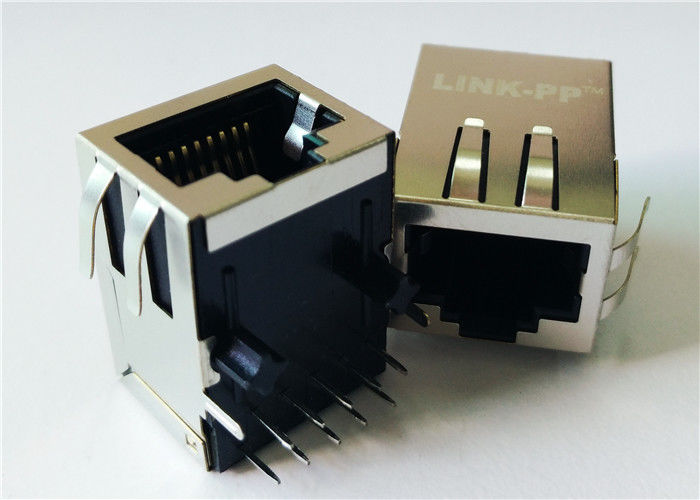

HFJ11-RP44ERL POE RJ45 Connector FastJack Tab-down 10/100Mbps Rectifier Integrated

Name: HFJ11-RP44ERL POE RJ45 Connector FastJack Tab-down 10/100Mbps Rectifier Integrated
Brand: LINK-PP
SKU: HFJ11-RP44ERL
Price: 0.09 USD
Availability: InStock
Rating: 4.6 (156 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: HFJ11-RP44ERL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                poe rj45 pinout, dual rj45 jack


Spec:	HFJ11-RP44ERL	Compatible:	LPJ0190CNL
Files:	3D STep	Std:	IEEE802.3af
Ethernet:	10 / 100Base-T X1	Termination:	Solder
LEDs:	Optional	Cross Rf:	LPJ0190CNL = HFJ11-RP44ERL

Spec:	HFJ11-RP44ERL
Compatible:	LPJ0190CNL
Files:	3D STep
Std:	IEEE802.3af
Ethernet:	10 / 100Base-T X1
Termination:	Solder
LEDs:	Optional
Cross Rf:	LPJ0190CNL = HFJ11-RP44ERL

HFJ11-RP44ERL POE RJ45 Connector FastJack Tab-down 10/100Mbps Rectifier Integrated

HFJ11-RP44ERL POE RJ45 Connector FastJack Tab-down 10/100Mbps Rectifier Integrated

FastJack ™ 1x1 Tab-down 10/100BASE-TX PoE RJ45 With Rectifier Bridge

1.10/100BASE-TX Ethernet RJ45 With Rectifier Included
2.IEEE802.3af Compliant
3.100% Compliance Testing
4.1500Vrms Hi-Pot
5.30µ” Gold (min) on Contacts
6.Proprietary Robust Contact Design

5.Designing Model: HFJ11-RP44ERL

6.Mass Production Model: LPJ0190CNL

MAG., REVERSE LATCH , LED optional, EMI-finger Optional.

Description

FastJack ™ 1x1 Tab-down 10/100BASE-TX PoE RJ45 meeting IEEE 802.3 / af

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle) 90 degree

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

20 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
