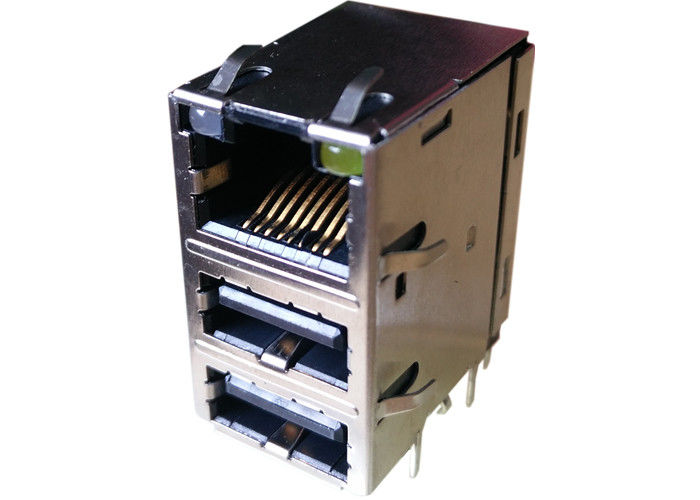

45F-10107GYD2NL USB With RJ45 Connectors 10 / 100Mbps Magnetic

45F-10107GYD2NL USB With Rj45 Connectors 10 / 100Mbps Magnetic

Quick Details

Rj45+USB W/LED W/Filter 10/100Mbps , Shielded Thru-Hole

1. RoHS “NL” peak solder rating 260°C
2. Low height and small footprint to minimize board space
3. Meets IEEE 802.3 specification
4. 350µH minimum OCL with 8mA bias current
5. High performance for maximum EMI suppression

6. Designing Model: 【45F-10107GYD2NL】

7. Mass Production Model:【LPJU5117BPNL】

MAG. REVERSE LATCH, LED optional; EMI-finger Optional.

Description


Rj45+USB W/LED W/Filter 10/100Mbps 8P 6C Shielded Thru-Hole, Meeting IEEE 802.3/ af/at

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11. Hipot: 1500Vrms MIN

Applications For Terminal User

This 45F-10107GYD2NL RJ45 USB connector Combo is ideal for a wide range of networking and communication applications, including ADSL modems, LAN-on-Motherboard solutions, hubs, switches, routers, PC cards, and mainboards. It is also suitable for SDH/PDH systems, IP phones, xDSL modems, VoIP gateways, call center solutions, complex set-top boxes, fast Ethernet switches, and Border Gateway Protocol (BGP) implementations.

EMS Application

Our RJ45 Connectors solutions support a wide range of Electronic Manufacturing Services (EMS) applications, including:

• Built-in Flexible PCB Assembly
• Rigid-Flexible PCB Assembly
• Microelectronic Assembly (Flip Chip, Chip-on-Board)
• Optoelectronic Assembly
• RF / Wireless Assembly
• Through-Hole Assembly
• Surface-Mount Assembly (SMT)
• Complete System Assembly
• Printed Circuit Board Assembly (PCBA)

These versatile capabilities ensure compatibility with diverse electronic devices and high-performance systems.
