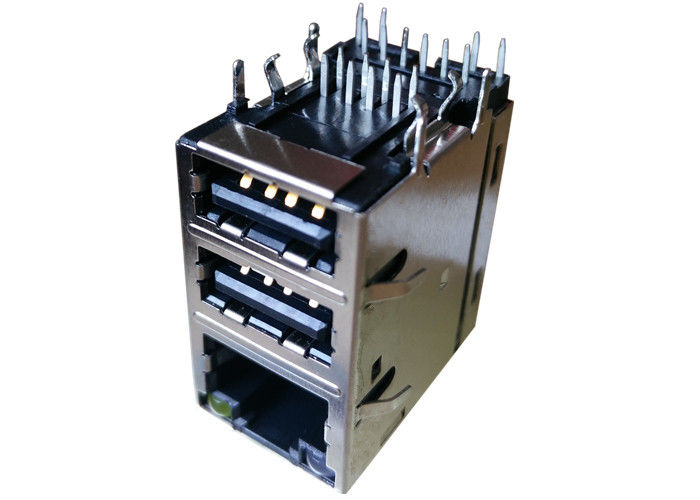

JW0-0013NL USB With Rj45 Connectors 10 / 100 / 1000Mbps Magnetic

Name: JW0-0013NL USB With Rj45 Connectors 10 / 100 / 1000Mbps Magnetic
Brand: LINK-PP
SKU: JW0-0013NL
Price: 0.11 USD
Availability: InStock
Rating: 4.5 (116 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: JW0-0013NL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                rj45 to usb connector, rj45 usb connector combo


Spec:	JW0-0013NL	Cross PN:	LPJU5303BONL
Original Munafactuer:	LINK-PP	Application:	10/100/1000 Base-T
Termination:	Solder	LEDs:	Optional
Ethernet:	GIGAbit	Cross Rf:	LPJU5303BONL = JW0-0013NL

Spec:	JW0-0013NL
Cross PN:	LPJU5303BONL
Original Munafactuer:	LINK-PP
Application:	10/100/1000 Base-T
Termination:	Solder
LEDs:	Optional
Ethernet:	GIGAbit
Cross Rf:	LPJU5303BONL = JW0-0013NL

JW0-0013NL USB With Rj45 Connectors 10 / 100 / 1000Mbps Magnetic

JW0-0013NL USB With Rj45 Connectors 10 / 100 / 1000Mbps Magnetic

Quick Details

Rj45+USB W/LED W/Filter 10/100/1000Mbps , Shielded Thru-Hole

1.RoHS “NL” peak solder rating 260°C
2.Low height and small footprint to minimize board space

3.Meets IEEE 802.3 specification
4.350µH minimum OCL with 8mA bias current
5.High performance for maximum EMI suppression

6.Designing Model: 【JW0-0013NL】

7.Mass Production Model:【LPJU5303BONL】

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description
Rj45+USB W/LED W/Filter 10/100/1000Mbps,Shielded Thru-Hole, Meeting IEEE 802.3/ af/at

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
