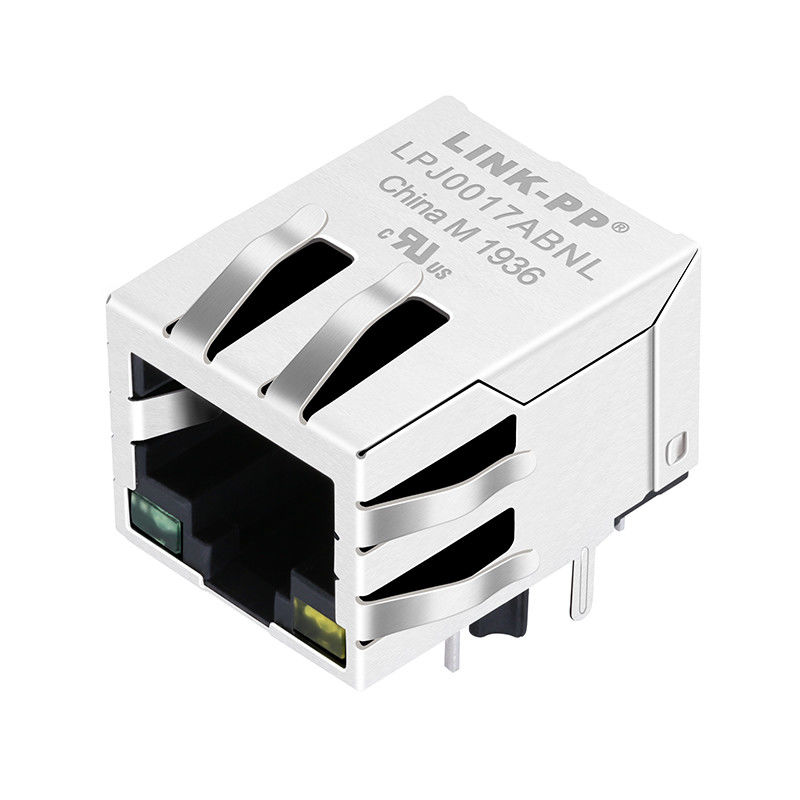

LPJ0017ABNL Cross KLU1T041-43 LF / LU1T041-43 LF Rj45 1x10/100 BASE-TX Filter

Name: LPJ0017ABNL Cross KLU1T041-43 LF / LU1T041-43 LF Rj45 1x10/100 BASE-TX Filter
Brand: LINK-PP
SKU: LPJ0017ABNL
Price: 0.09 USD
Availability: InStock
Rating: 4.6 (107 reviews)

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: LPJ0017ABNL

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                single port rj45, rj45 smd connector


Specification:	KLU1T041-43 LF / LU1T041-43 LF	Part No:	LPJ0017ABNL
Application:	10/100Base-T	Termination:	Solder
LEDs:	Optional	Samples:	Free Available

Specification:	KLU1T041-43 LF / LU1T041-43 LF
Part No:	LPJ0017ABNL
Application:	10/100Base-T
Termination:	Solder
LEDs:	Optional
Samples:	Free Available

LPJ0017ABNL Cross KLU1T041-43 LF / LU1T041-43 LF Rj45 1x10/100 BASE-TX Filter

LINK-PP LPJ0017ABNL 1x 10/100Mbps Jack Rj-45
Cross KLU1T041-43 LF / LU1T041-43 LF
RJ-45 needs to be matched FCC standard.
Complies with requirement of IEEE802.3u standards.
RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
Size same as RJ-45 connector to save PCB board space.
Reduced EMI radiation to improve EMI performance.
Design for 10/100 BASE transmission over UTP-5 cable.
Includes integrated 2 LEDS(option).
Compliance with ROHS requirements.

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-65MHz
4.Return Loss:
-20dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-40dB MIN @ 1-30MHz
-35dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-50MHz
-20dB MIN @ 50-150MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃.

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
