LU1T041C-43 LF / LU1S041F-43 LF RJ45 Single Port 10 / 100 BASE-TX Filter

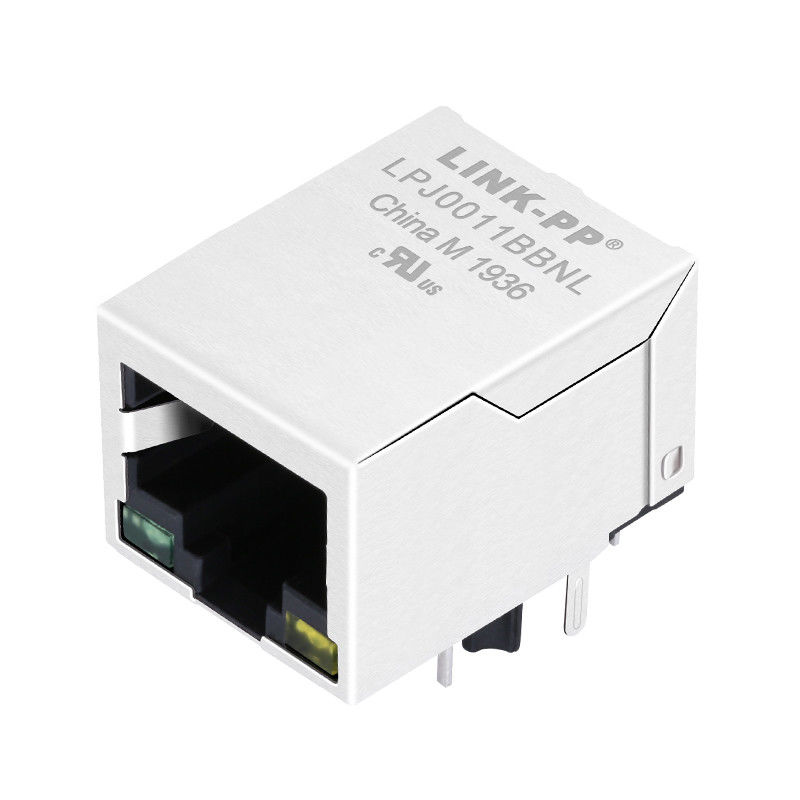

Quick Details of the LINK-PP LPJ0011BBNL Industrial RJ45 MagJack

10/100 BASE-T RJ45 1 x 1 INTEGRATED MAGNETICS CONNECTOR

1. Standard Compliance:

• Matches FCC standards for RJ-45 connectors.
• Complies with IEEE802.3u standards.

2. Integrated Components:

• RJ-45 connector includes a transformer, impedance resistor, and high voltage capacitor.
• Designed with the same size as a standard RJ-45 connector to save PCB board space.

3. Performance:

• Reduces EMI radiation to improve overall EMI performance.
• Designed for 10/100 BASE transmission over UTP-5 cable.
• Includes two integrated LEDs (optional).

4. EMI and Signal Isolation:

• LED signal leads are isolated from Ethernet signal leads to reduce EMI and cross-talk.

5. RoHS Compliance:

• Fully compliant with RoHS requirements.

6. Temperature Range:

• Operating temperature range: 0℃ to +70℃.
• Storage temperature range: -25℃ to +85℃.

7. Models:

• Designing Model: LU1T041C-43 LF / LU1S041F-43 LF.
• Mass Production Model: LPJ0011BBNL.

Description

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11. Hipot: 1500Vrms MIN

Material Specifications of LU1T041C-43 LF / LU1S041F-43 LF:

1. Plastic Material: Thermoplastic (UL 94V-0) black housing ensures high flame retardance and durability.
2. Metal Shield: Brass with a 20u" nickel thickness for effective shielding.
3. Spring Wire: Phosphor bronze with selective gold plating for reliable conductivity.
4. Solder Pin: 0.4x0.4mm, phosphor bronze with solder plating for secure PCB mounting.
5. This versatile connector is ideal for industrial applications requiring robust performance and high reliability in Ethernet connectivity.
