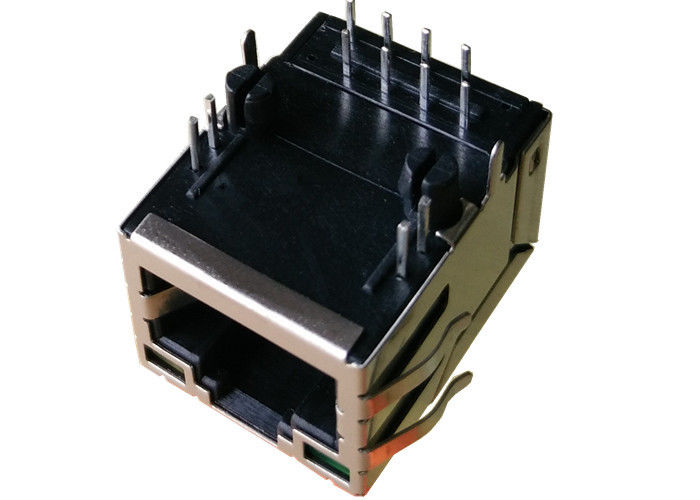

KRU1T041X-44 LF RJ45 Single Port Ethernet Modular Jack With 100M Magnetic

Product Details

Place of Origin: Guangdong,China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: KRU1T041X-44 LF

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 250000-320000/Month

Get Best Price
Highlight:

rj45 smd connector

,

shielded rj45 plugs

Part Number:
KRU1T041X-44 LF
Mass Production:
LPJXXXXNL
Original Munafactuer:
LINK-PP
Application:
10/100Base-T
Termination:
Solder
LEDs:
Optional
IC Match:
ATSAMD20E18A-MNT
Mount Style:
DIP / Side Entry
Part Number:
KRU1T041X-44 LF
Mass Production:
LPJXXXXNL
Original Munafactuer:
LINK-PP
Application:
10/100Base-T
Termination:
Solder
LEDs:
Optional
IC Match:
ATSAMD20E18A-MNT
Mount Style:
DIP / Side Entry
KRU1T041X-44 LF RJ45 Single Port Ethernet Modular Jack With 100M Magnetic



KRU1T041X-44 LF RJ45 Single Port Ethernet Modular Jack With 100M Magnetic


Quick Details

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10 / 100 BASE-TX MAGNETICS



1.RJ-45 needs to be matched FCC standard.
2.Complies with requirement of IEEE802.3u standards.
3.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
4.Size same as RJ-45 connector to save PCB board space.
5.Reduced EMI radiation to improve EMI performance.
6.Design for 10/100 BASE transmission over UTP-5 cable.
7.Includes integrated 2 LEDS(option).
8.LED signal leads are isolated from the Ethernet signal leads to reduce EMI and cross talk.
9.Compliance with ROHS requirements.
10.Operating temperature range: 0℃ to +70℃.
11.Storage temperature range: -25℃ to +85℃.

12.Designing Model: 【KRU1T041X-44 LF】

13.Mass Production Model:【LPJXXXXNL】


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description


SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10 / 100 BASE-TX MAGNETICS

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...





Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......





EMS Application



Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
