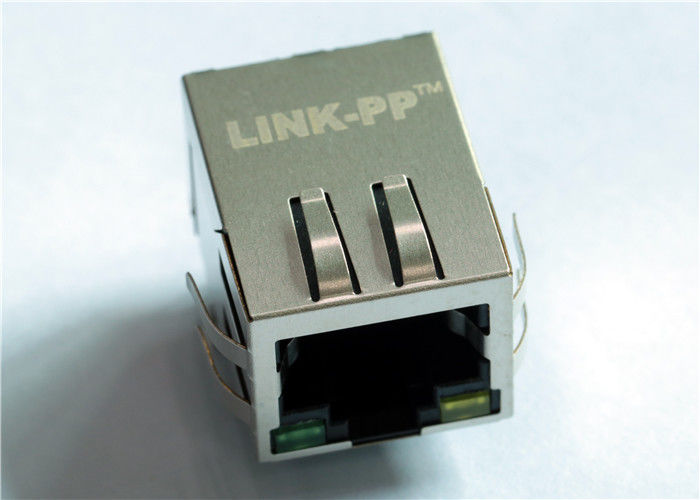

7499011222A RJ45 With Integrated Magnetics 10/100Base Socket LPJ4011GFNL

Name: 7499011222A RJ45 With Integrated Magnetics 10/100Base Socket LPJ4011GFNL
Brand: LINK-PP
SKU: 7499011222A
Rating: 4.7 (150 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: 7499011222A

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000

Price: Supportive

Packaging Details: 50/1200

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                stacked rj45 connectors, rj45 with magnetics


Spec:	7499011222A	P.N:	LPJ4011GFNL
Application:	10/100Base-T	Termination:	Solder
LEDs:	Optional	Sampes:	Free

Spec:	7499011222A
P.N:	LPJ4011GFNL
Application:	10/100Base-T
Termination:	Solder
LEDs:	Optional
Sampes:	Free

7499011222A RJ45 With Integrated Magnetics 10/100Base Socket LPJ4011GFNL

7499011222A RJ45 With Integrated Magnetics 10/100Base Socket LPJ4011GFNL

1.RJ-45 needs to be matched FCC standard.
2.Complies with requirement of IEEE802.3u standards.
3.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
4.Size same as RJ-45 connector to save PCB board space.
5.Reduced EMI radiation to improve EMI performance.
6.Design for 10/100 BASE transmission over UTP-5 cable.
7.Compliance with ROHS requirements.
8.Operating temperature range: 0℃ to +70℃/ -40℃ to +85℃
9.Storage temperature range: -25℃ to +85℃.

10. 7499011222A Pin to Pin / Cross /Compatible / Analogue

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.
