7499211125 , LPJ16047A10NL Rectifier Bridge PoE Injector Rj45

Name: 7499211125 , LPJ16047A10NL Rectifier Bridge PoE Injector Rj45
Brand: LINK-PP
SKU: 7499211125
Price: 0.09 USD
Availability: InStock
Rating: 4.9 (125 reviews)

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,REACH,RoHS

Model Number: 7499211125

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.09-$1.85

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                poe rj45 pinout, rj45 power over ethernet


Part Number:	7499211125	P/N:	LPJ16047A10NL
Application:	10/100Base-T POE	Termination:	DIP / Side Entry
LEDs:	Optional	Samples:	Available

Part Number:	7499211125
P/N:	LPJ16047A10NL
Application:	10/100Base-T POE
Termination:	DIP / Side Entry
LEDs:	Optional
Samples:	Available

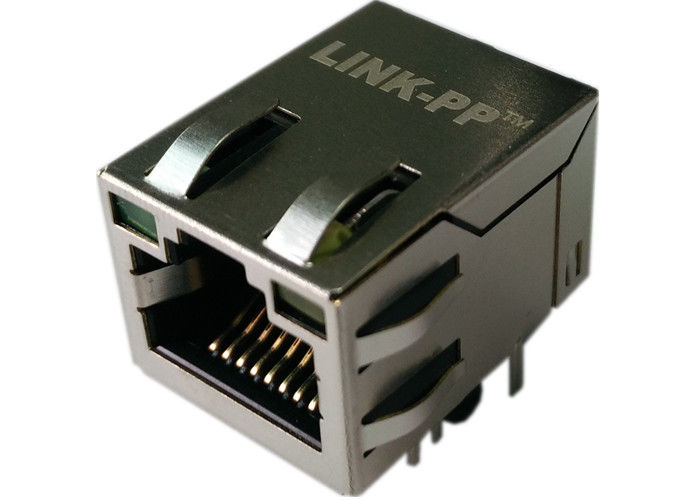

7499211125 , LPJ16047A10NL Rectifier Bridge PoE Injector Rj45

7499211125 Single Port Rj45 Connector With Integrated Magnetics
RJ-45 IEEE 802.3af Power over Ethernet (PoE)
Complies with requirement of IEEE802.3af standards.
10/100 Ethernet RJ45 LPJ16047A10NL
IEEE802.3u Compliant With Rectifier Bridge Circuits
6μ” Gold Plating (min) on Contacts
350uH min OCL at 8mA DC Bias Across the
Full Temp Range
100% Electrical Testing
1500Vrms Hi-Pot
Proprietary Robust Contact Design
Design for 10/100 BASE transmission over UTP-5 cable.
Compliance with ROHS requirements.
Operating temperature range: 0℃ to +70℃/ -40℃ to +85℃

1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3af specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
