Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 7499010441
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive&Competitive
Packaging Details: Tray&Carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Specification: |
7499010441 |
Part No: |

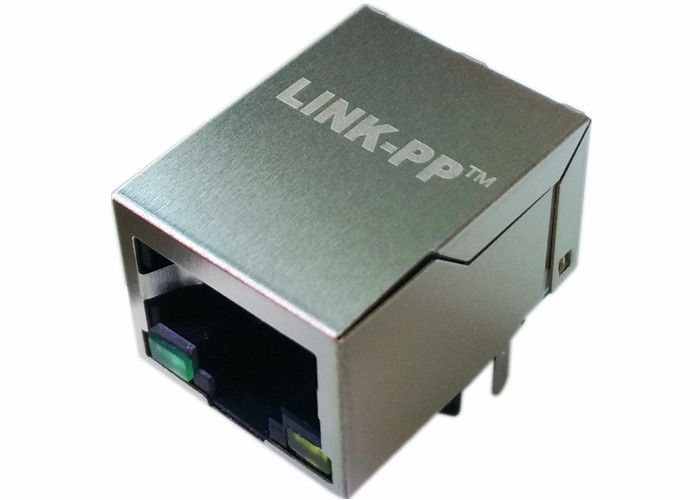

LPJ4252F86NL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100Base-T |
Family: |
Rj45 With Transformer GDT |
LEDs: |
Optional |
Specification: |
7499010441 |
Part No: |
LPJ4252F86NL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100Base-T |
Family: |
Rj45 With Transformer GDT |
LEDs: |
Optional |
1.Turns Ratio(±3%):
(P1-P2):(J1-J2)=1:1
(P3-P6):(J3-J6)=1:1
2.Inductance: 350uH Min
@0.1V,0.1MHz,8mA DC Bias
3.Insertion Loss:
0.3-100MHz: -1.0dB Max
4.Return Loss(dB Min @100Ω):
1-10MHz: -20 10-30MHz: -16
30-60MHz: -12 60-80MHz: -10
5.Cross talk:
1-30MHz: -35dB Min
6.Common Mode Rejection
1-50MHz: -30dB Min
7.Hipot: 1500Vrms Min
8.Operating Temperature: -40℃～+85℃.
|
|
