RJ45 SMT Connector Overview

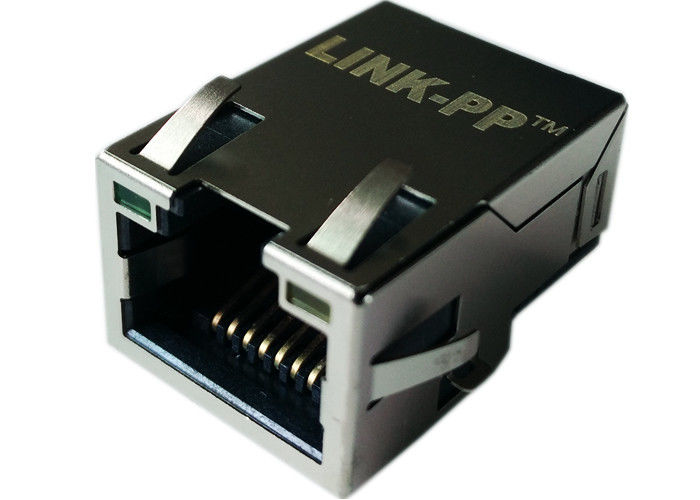

The 7498111120R is an 8P8C surface-mount RJ45 Jack with an integrated LAN transformer, suitable for standard applications. This WE-RJ45 series RJ45 jack has a 1-port operation and gold-plated contacts.
MATERIAL AND FINISH:
Housing: Thermoplastic LCP Blackper UL94V-0
Shield: Brass with semi-bright nickel plating
Contact: Phosphor Bronze, base material
Contact Plating: 100% tin plating with nickel underplating, 30u" on the contact area
ELECTRICAL SPECIFICATIONS @ 25°C:
| PARAMETER | TEST CONDITIONS | VALUE |
| INDUCTANCE J1-J2 | 100kHz,100mV,8mADC | 350uH min. |
| INDUCTANCE J3-J6 | 100kHz,100mV,8mADC | 350uH min. |
| INDUCTANCE J4-J5 | 100kHz,100mV,8mADC | 350uH min. |
| INDUCTANCE J7-J8 | 100kHz,100mV,8mADC | 350uH min. |
| DIELECTRIC PRI-SEC | - | 2250VDC,1 minute |
| TURNS RATIO | Per Schematic | 1:1 |
| INSERTION LOSS | 1MHz-100MHz | -1.0dB max. |
| RETURN LOSS | 1MHz-30MHz | -18dB min. |
| RETURN LOSS | 30MHz-60MHz | -15dB min. |
| RETURN LOSS | 60MHz-80MHz | -12dB min. |
| RETURN LOSS | 80MHz-100MHz | -10dB min. |
| CROSSTALK | 1MHz-30MHz | -37dB min. |
| CROSSTALK | 30MHz-60MHz | -32dB min. |
| CROSSTALK | 60MHz-100MHz | -27dB min. |
| CMRR | 1MHz-50MHz | -30dB min. |
| CMRR | 50MHz-130MHz | -20dB min. |
