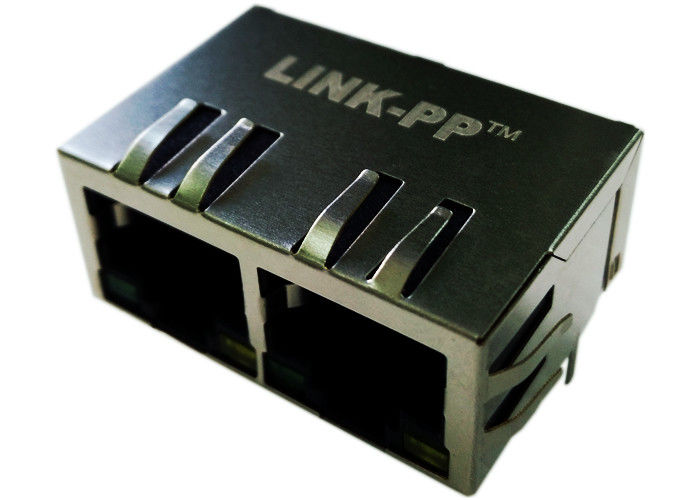

7499021125 RJ45 2x10/100Mbps Ethernet Magnetic Jack Female Module LED Indicator

Name: 7499021125 RJ45 2x10/100Mbps Ethernet Magnetic Jack Female Module LED Indicator
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: 7499021125
Price: 5.11 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: 7499021125

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.11-$12

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 208K/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    multi port connector, modular jacks rj45


Specification:	7499021125	Part No:	LPJ26204AENL
Application:	10/100Mbps	Termination:	Solder
Indicator:	Optional LED	Samples:	Available

Specification:	7499021125
Part No:	LPJ26204AENL
Application:	10/100Mbps
Termination:	Solder
Indicator:	Optional LED
Samples:	Available

7499021125 RJ45 2x10/100Mbps Ethernet Magnetic Jack Female Module LED Indicator

1x2,10/100 RJ45 R/A SHIELd W/LED
LPJ26204AENL LINK-PP Magnetic Rj45
Cross 7499021125

6.350uH min OCL with 8mA bias current. Title: Electrical Specifications: @25℃ 1.Turns Ratio(± 2%): TX=1CT:1CT RX=1CT:1CT 2.Return Loss(dB Min): 1-10MHz:-18 30MHz:-16 60-100MHz:-12 3.Crosstalk: 1-100MHz:-30dB Min 4.Insertion Loss: 1-100MHz:-1.2dB Max 5.CMR: 1-50MHz:-30dB Min 50-130MHz:-20dB Min 7.Isolation Voltage:1500V 8.Operating Temperature:0-70℃

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage

18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
