Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: MIC24121-5308W-LF3
Payment & Shipping Terms
Minimum Order Quantity: 200 PCS
Price: $1.0
Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: In Stock Ship Within 3 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
MIC24121-5308W-LF3 |
Mass Production: |
LPJ19911ADNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100BASE-T Ethernet |
Termination: |
Solder |
Mounting Style: |
SMT / Surface Mount |
Port Configuration: |
1×1 RJ45 Port |
Isolation: |
2250 VDC |
Part Number: |
MIC24121-5308W-LF3 |
Mass Production: |
LPJ19911ADNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100BASE-T Ethernet |
Termination: |
Solder |
Mounting Style: |
SMT / Surface Mount |
Port Configuration: |
1×1 RJ45 Port |
Isolation: |
2250 VDC |

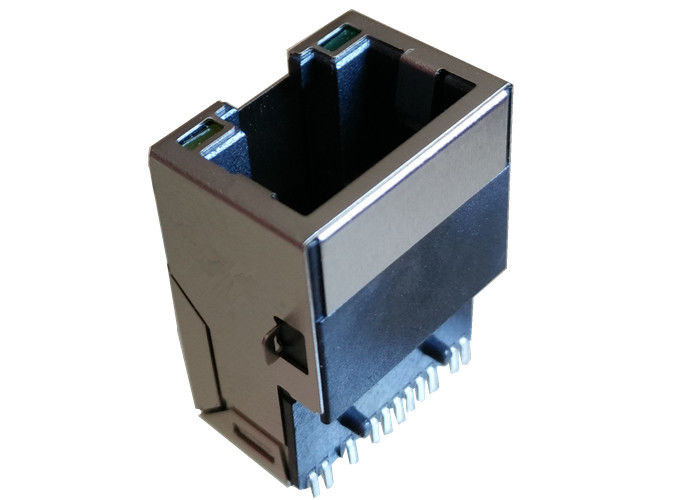

MIC24121-5308W-LF3 is a 10/100BASE-T SMT RJ45 connector with integrated magnetics, 2250V isolation, 350µH OCL, –40 to +85°C.
| Parameter | Specification |
|---|---|
| Application | Designed for 10/100BASE-T Ethernet |
| Inductance (OCL) | 350 µH min. @ 100 kHz, 100 mV, 8 mA DC bias (J1–J2; J3–J6, Lp) |
| Dielectric Withstand Voltage | 2250 VDC, 1 minute (between P1–J1, P1 tied to P4) |
| Turns Ratio / Polarity (RX) | (P1–P3) : (J1–J2) = 1 : 1 ±2% |
| Turns Ratio / Polarity (TX) | (P4–P6) : (J3–J6) = 1 : 1 ±2% |
| Insertion Loss | ≤ –1.0 dB (1 MHz – 100 MHz) |
| Return Loss | ≥ –18 dB (1 – 30 MHz) |
| ≥ –16 dB (30 – 45 MHz) | |
| ≥ –14 dB (45 – 60 MHz) | |
| ≥ –12 dB (60 – 80 MHz) | |
| Crosstalk | ≤ –35 dB (1 MHz – 100 MHz) |
| Common Mode Rejection (CMR) | ≤ –35 dB (1 MHz – 100 MHz) |
| Operating Temperature Range | –40 °C to +85 °C |
MIC24121-5308W-LF3 integrates Ethernet magnetics directly inside the RJ45 connector housing, allowing designers to eliminate discrete transformer components.
This improves signal integrity, reduces EMI, and simplifies PCB routing in high-density layouts.
The high isolation voltage and strong common-mode rejection make it suitable for industrial Ethernet environments.
