MIC24121-5308W-LF3 SMT RJ45 Connector Integrated Surface Mount / Low Profile

Good quality Magnetic RJ45 Jack for sales
Good quality Magnetic RJ45 Jack for sales
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

MIC24121-5308W-LF3 SMT RJ45 Connector Integrated Surface Mount / Low Profile

China MIC24121-5308W-LF3 SMT RJ45 Connector Integrated Surface Mount / Low Profile supplier

Large Image :  MIC24121-5308W-LF3 SMT RJ45 Connector Integrated Surface Mount / Low Profile

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: MIC24121-5308W-LF3

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: $1.68↑
Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: MIC24121-5308W-LF3 Mass Production: LPJXXXXXNL
Original Munafactuer: LINK-PP Application: 10/100Base-T
Termination: Solder LEDs: Optional
IC Match: ATSAMD20E18A-MNT Mount Style: DIP / Side Entry

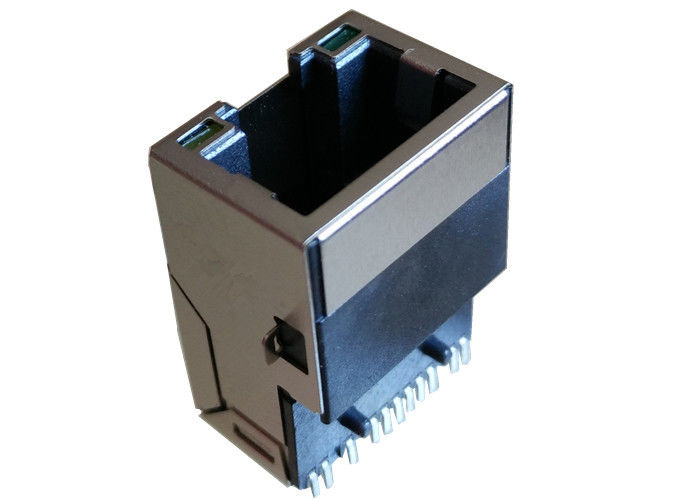

MIC24121-5308W-LF3 SMT RJ45 Connector Integrated Surface Mount / Low Profile


Quick Details

Integrated RJ45 Surface Mount & Low Profile



1.RJ-45 needs to be matched FCC standard.
2.Complies with requirement of IEEE802.3u standards.
3.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
4.Size same as RJ-45 connector to save PCB board space.
5.Reduced EMI radiation to improve EMI performance.
6.Design for 10/100 BASE transmission over UTP-5 cable.
7.Compliance with ROHS requirements.
8.Operating temperature range: 0℃ to +70℃/ -40℃ to +85℃
9.Storage temperature range: -25℃ to +85℃.

10.Designing Model: 【MIC24120-5301W-LF3 / MIC24121-5301W-LF3】

11.Mass Production Model:【LPJXXXXXNL】


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description


LAN-Übertrager WE-RJ45LAN  Transformer 10 / 100 / 1000Mbps

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...





Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......





EMS Application



Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
