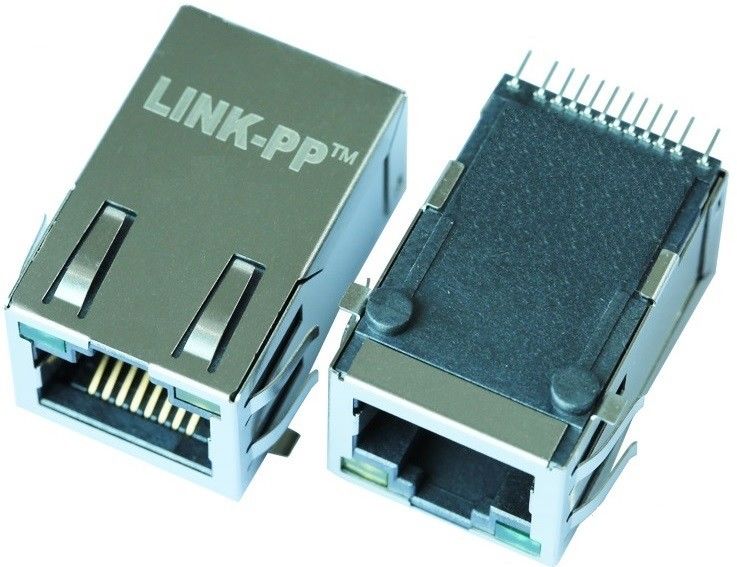

MIC2412A-5108 Integrated 10 / 100 Base-T RJ45 Surface Mount MIC2412A-5108

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: MIC2412A-5108

Payment & Shipping Terms

Minimum Order Quantity: 200 PCS

Price: $1.35↑

Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

rj45 smt connector

,

surface mount rj45 connector

Part Number:
MIC2412A-5108
Mass Production:
LPJXXXXNL
Original Munafactuer:
LINK-PP
Application:
10 / 100 Base-T
Termination:
Solder
LEDs:
Optional
IC Match:
ATSAMD20E18A-MNT
Mount Style:
DIP / Side Entry
Part Number:
MIC2412A-5108
Mass Production:
LPJXXXXNL
Original Munafactuer:
LINK-PP
Application:
10 / 100 Base-T
Termination:
Solder
LEDs:
Optional
IC Match:
ATSAMD20E18A-MNT
Mount Style:
DIP / Side Entry
MIC2412A-5108 Integrated 10 / 100 Base-T RJ45 Surface Mount MIC2412A-5108



MIC2412A-5108 Integrated 10 / 100 Base-T RJ45 Surface Mount MIC2412A-5108


Quick Details

Integrated 10/100 Base-T RJ45 Surface Mount



• Surface Mount
• AutoMDIX compatible
• Optional PoE compatible designs
• Optional pin-outs
• Industry standard connector footprint
• Optimum performance
• Cost Effective
• Both RoHS compliant and lead-terminal parts available

• Designing Model: 【MIC2412A-5108】

• Mass Production Model:【LPJXXXXXNL】


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description


Integrated 10/100 Base-T RJ45 Surface Mount

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
