Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 0879-2C6R-54
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
0879-2C6R-54 |
Mass Production: |
LPJG67037A4NL |
Connector Type: |
RJ45 |
Applications: |
1000 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Part Number: |
0879-2C6R-54 |
Mass Production: |
LPJG67037A4NL |
Connector Type: |
RJ45 |
Applications: |
1000 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |

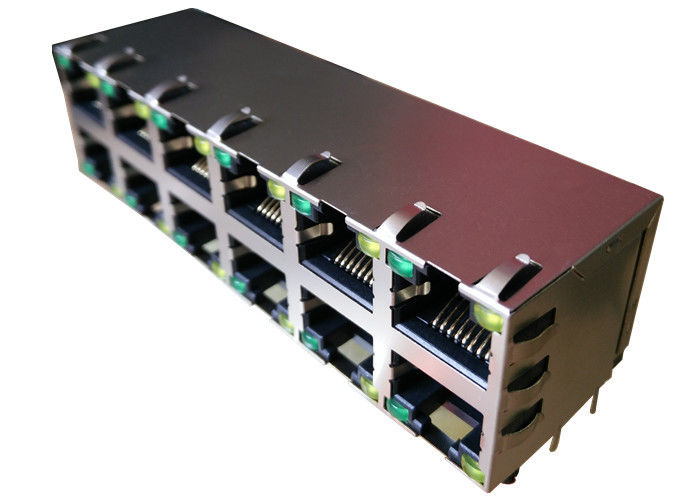

0879-2C6R-54 Stacked 2x6 Conn Magjack 12Port 1000 Base-T Shielded EMI Finger
1.RJ-45 needs to be matched FCC standard.
2.Complies with requirement of IEEE802.3u standards.
3.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
4.Size same as RJ-45 connector to save PCB board space.
5.Reduced EMI radiation to improve EMI performance.
6.Design for 10/100/1000 BASE transmission over UTP-5 cable.
7.Compliance with ROHS requirements.
8.Operating temperature range: -40℃ to +85℃
9.Storage temperature range: -25℃ to +85℃.
10.Designing Model: 【0879-2C6R-54】
11.Mass Production Model:【LPJG67037A4NL】
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
| 2X6 RJ-45 Female Connector with 1000 Base-T Integrated Magnetics,Green&Yellow/Green&Yellow LED,Tab Up/Tab Down,RoHS | |
| LINK-PP Part Number | LPJG67037A4NL |
| Belfuse Part Number | 0879-2C6R-54-F |
| Application-Lan | ETHERNET(NoN PoE) |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores per Port | 8 |
| Diodes | NO DIODES |
| LED Option | GREEN&YELLOW/GREEN&YELLOW |
| Latch | TAB UP/TAB DOWN |
| Number of Ports | 2X6 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Package Height (mm) | 25.79 |
| Package Length (mm) | 28.40 |
| Package Width (mm) | 87.12 |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH |
| Speed | 1000 BASE-T |
| Temperature | - 40 TO + 85℃ |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
18 years production experience,
2600 staff,
100% test
Flexible delivery time
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
