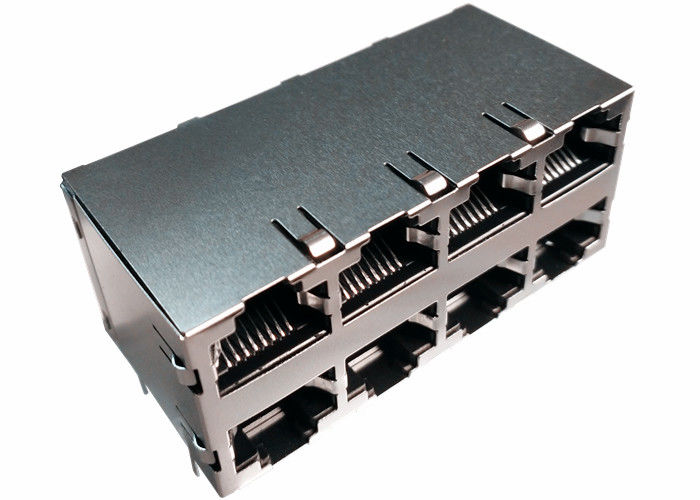

DA4T10304 Stacked Rj45 Connectors 2x4 Integrated Gigabit Ethernet Modular Jack
DA4T10304 |
Stacked Rj45 Connectors |
Stacked RJ45 Modular jack |
Rj45 Stacked Connectors |
10/100/1000 Base-T RJ45 2x4 Integrated Magnetics Connector
1.Complies with requirement of IEEE 802.3ab standards.
2.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
3.Size same as RJ-45 connector to save PCB board space.
4.Reduced EMI radiation to improve EMI performance.
5.Design for 10/100/1000 BASE transmission over UTP-5 cable.
6.Compliance with ROHS requirements.
Designing Model: 【DA4T10304】
Mass Production Model:【LPJG47561CNL】
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
Description
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 2x4
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN
Electrical Specifications @25℃
1.Turns Ratio:
PRI:SEC = 1CT:1CT
2.OCL:
350uH MIN @ 100KHz,100mV,8mADC
3.Insertion Loss:
1~100MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1~30MHz:-18 30~60MHz:-14
60~80MHz:-12
5.Crosstalk(dB TYP):
1~30MHz:-40 30~60MHz:-35
60~80MHz:-30
6.Differential to Common Mode Rejection:
1~50MHz: -30dB TYP
50~150MHz: -20dB TYP
7.CMRR: 1~100MHz:-30dB MIN
8.Isolation: 1500Vrms MIN
9.Operating Temperature Range: -40℃~+85℃.
NOTES
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max,5 Sec Max.
