Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: DU1D201A1 / DU1S201A4
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
DU1D201A1 / DU1S201A4 |
Mass Production: |
LPJXXXXNL |
Connector Type: |
RJ45 |
Applications: |
10/100 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90~ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Part Number: |
DU1D201A1 / DU1S201A4 |
Mass Production: |
LPJXXXXNL |
Connector Type: |
RJ45 |
Applications: |
10/100 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90~ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |

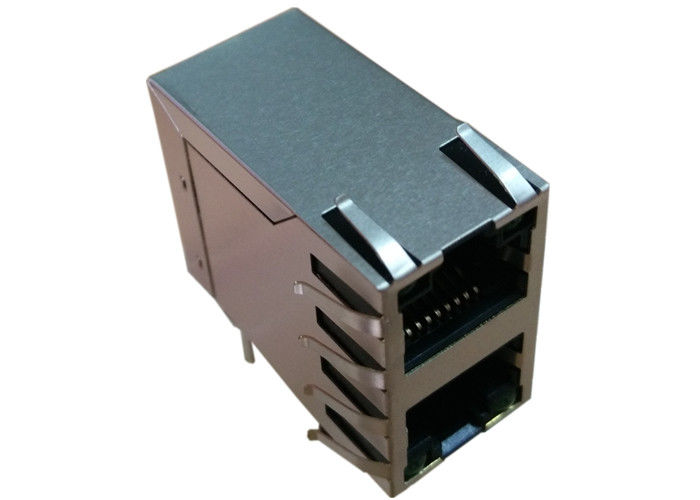

DU1D201A1 / DU1S201A4 | Rj45 2x1 | Stacked RJ45 Modular jack | Rj45 Stacked Connectors |
1.Complies with requirement of IEEE 802.3ab standards.
2.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
3.Size same as RJ-45 connector to save PCB board space.
4.Reduced EMI radiation to improve EMI performance.
5.Design for 10/100BASE transmission over UTP-5 cable.
6.Compliance with ROHS requirements.
7.Operating temperature range: 0 to +70 . ℃ ℃
8.Storage temperature range: -25 to +85 .
Designing Model: 【DU1D201A1 / DU1S201A4】
Mass Production Model:【LPJXXXXNL】
MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
1500Vrms MIN
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
