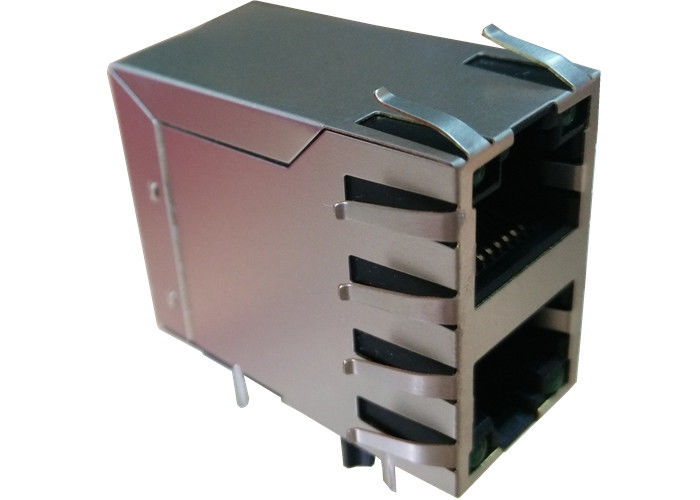

DU1S201C4 / DU1T202A1 Stacked RJ45 Modular Jack Rj45 2x1 Magnetics 10/100Mbps

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: DU1S201C4 / DU1T202A1

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 usb connector combo

Part Number:
DU1S201C4 / DU1T202A1
Mass Production:
LPJXXXXNL
Connector Type:
RJ45
Applications:
10/100 Base-T
Mounting Type:
Through Hole
Orientation:
90~ Angle (Right)
Termination:
Solder
Shielding:
Shielded, EMI Finger
Part Number:
DU1S201C4 / DU1T202A1
Mass Production:
LPJXXXXNL
Connector Type:
RJ45
Applications:
10/100 Base-T
Mounting Type:
Through Hole
Orientation:
90~ Angle (Right)
Termination:
Solder
Shielding:
Shielded, EMI Finger
DU1S201C4 / DU1T202A1 Stacked RJ45 Modular Jack Rj45 2x1 Magnetics 10/100Mbps



DU1S201C4 / DU1T202A1 Stacked RJ45 Modular Jack Rj45 2x1 Magnetics 10/100M


DU1S201C4  DU1T202A1 Rj45 2x1  Stacked RJ45 Modular jack Rj45 Stacked Connectors



10 / 100Base-T RJ45 2x1 Integrated Magnetics Connector

1.Complies with requirement of IEEE 802.3ab standards.
2.RJ-45 connector integrated with transformer/impedance resistor/high voltage capacitor.
3.Size same as RJ-45 connector to save PCB board space.
4.Reduced EMI radiation to improve EMI performance.
5.Design for 10/100BASE transmission over UTP-5 cable.
6.Compliance with ROHS requirements.
7.Operating temperature range: 0 to +70 . ℃ ℃
8.Storage temperature range: -25 to +85 .

Designing Model: 【DU1S201C4 / DU1T202A1】

Mass Production Model:【LPJXXXXNL】


MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description


1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...





Competitive Advantage

DU1S201C4 / DU1T202A1

18 years production experience,

2600 staff,

100% test

Flexible delivery time



Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......





EMS Application



Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly





Other Replaceable List



DU1S201C4 / DU1T202A1  Stacked RJ45 Modular Jack  KRU1S041F LF
DA4T103A3 / DA4T103A4 DA6T001A3  Rj45 2x1
KLU1S041 LF/ LU1S041 LF  DA4S103A4 KRU1S516 LF
KLU1S041A LF / LU1S041A LF DA4T103G3 KRU1S041X-43 LF
LU1S041A LF / LU1S041C LF  DA1T002I3 KRU1T041-34 LF
KLU1S041X LF / LU1S041X LF DA1T101J1 DU1S201C4 / DU1T202A1
KLU1T041 LF / DA6T001A3 DA4T103N3 DA4T10303
KLU1T516 LF / LU1T516 LF DA4T10304 KHU1S041F3 LF
KLA1S109 LF / DA4S103A4 DA6T001A3 DU1S201C4 / DU1T202A1
KLA1S109-43 LF / LA1S109-43 LF DU1S201C4 KHU1S041Q4 LF
KLU1S041 LF / LU1S041 LF DU1D201A1 / DU1S201A4 KHU1S041Q5 LF
KLU1S041C LF / LU1S041C LF DU1T202A3 KHU1S041F7 LF
KLU1T041 LF / DA4T103G3 DU1S201C4 / DU1T202A1 KHU1S041Q6 LF
KLA1T109-43 LF / LA1T109-43 LF  Rj45 2x1 DA4T10304
KLA4S109 LF / LA4S109 LF DU1T301B3 HU1S041X LF
DU1S201C4 / DU1T202A1  Rj45 2x1 DU1D201A1 / DU1S201A4
