7499051002 Stacked Rj45 Connectors LAN-Übertrager WE-RJ45LAN 10/100BaseT

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: UL,RoHS,Reach,ISO

Model Number: 7499051002

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/60K

Price: $0.11-$24

Packaging Details: Tray

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 180K/Month

Get Best Price
Highlight:

stacked rj45 connectors

,

rj45 usb connector combo

Part Number:
7499051002
Mass Production:
LPJ17202CNL
Connector Type:
RJ45
Applications:
10/100 Base-T
Mounting Type:
Through Hole
Orientation:
90~ Angle (Right)
Termination:
Solder
Shielding:
Shielded, EMI Finger
Part Number:
7499051002
Mass Production:
LPJ17202CNL
Connector Type:
RJ45
Applications:
10/100 Base-T
Mounting Type:
Through Hole
Orientation:
90~ Angle (Right)
Termination:
Solder
Shielding:
Shielded, EMI Finger
7499051002 Stacked Rj45 Connectors LAN-Übertrager WE-RJ45LAN 10/100BaseT

7499051002 Stacked Rj45 Connectors LAN-Übertrager WE-RJ45LAN 10/100BaseT

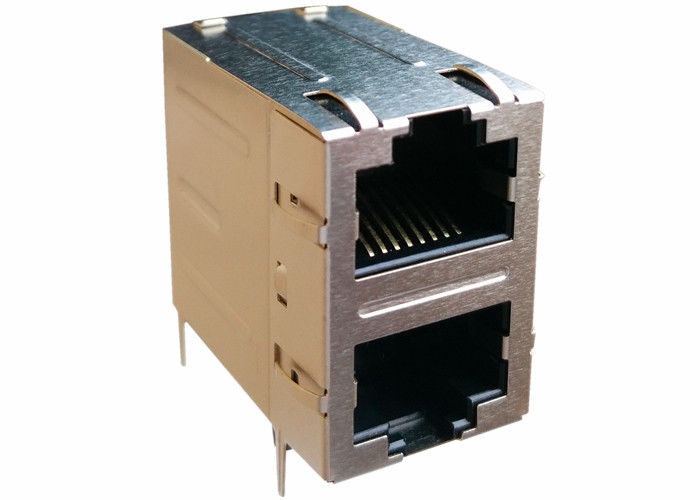

7499051002 Rj45 2x1 Magnetics Stacked Rj45 Connectors 2x Rj45 Lan Ports





Designing Model: 【7499051002】 Mass Production Model:【LPJ17202CNL】

LAN-Übertrager WE-RJ45LAN 10/100BaseT

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place androute on PCB.
♦ Conserves minimizing PCB space.




MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description

7499051002 Stacked Rj45 Connectors LAN-Übertrager WE-RJ45LAN 10/100BaseT

1. Product Type Features:

  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
  1) Shielded = Yes

4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder

5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length

6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
  1) Connector Style = Jack

8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,

      Wave solder capable to 260°C, Wave solder capable to 265°C

      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

     1500Vrms MIN



Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...





Competitive Advantage

7499051002
