Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 10082590-XXXLF
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/60K
Price: $0.11-$24
Packaging Details: Tray
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 180K/Month
Part Number: |
10082590-XXXLF |
Mass Production: |
LPJ17225CNL |
Connector Type: |
RJ45 |
Applications: |
10/100 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Part Number: |
10082590-XXXLF |
Mass Production: |
LPJ17225CNL |
Connector Type: |
RJ45 |
Applications: |
10/100 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |

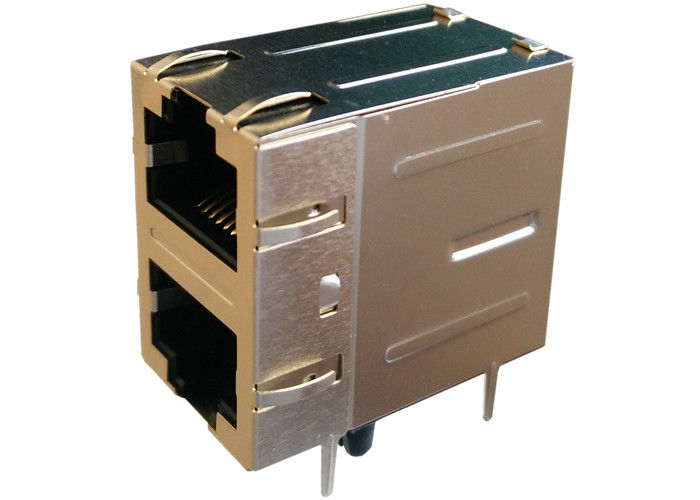

| 10082590-XXXLF | RJ45 with Magnetics | Stacked RJ45 Connectors | 2x1 Port |
Designing Model: 【10082590-XXXLF】 Mass Production Model:【LPJ17225CNL】
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN manufacturers.
♦ Primary center taps are available for additional EMI reduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.
1. Product Type Features:
1) Product Type = Stacked RJ45 Connectors
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 2 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger = With
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Multi
2) EMI Fingers - Sides = With
3) Latch Orientation = Standard - Latch Up and Down
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant
. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
10. Hipot: 1500Vrms MIN
