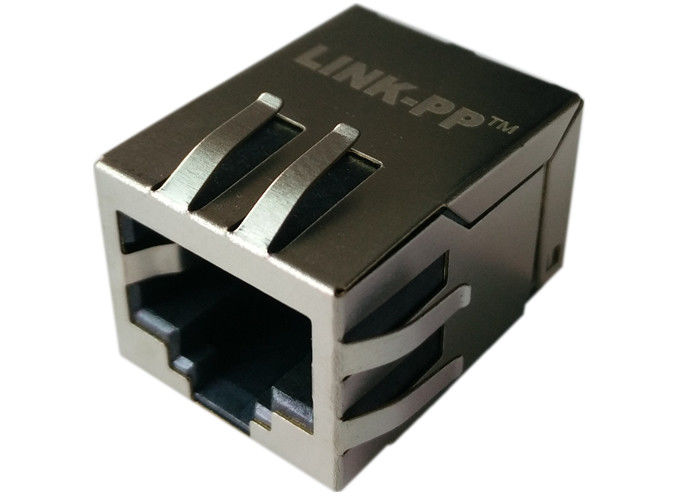

J0C-0004NL Surface Mount Rj45 Connector 10/100Base-T Jack LPJ19113CNL

Name: J0C-0004NL Surface Mount Rj45 Connector 10/100Base-T Jack LPJ19113CNL
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: J0C-0004NL
Price: 372.50 USD
Availability: InStock

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH,RoHS

Model Number: J0C-0004NL

Payment & Shipping Terms

Minimum Order Quantity: 500

Price: Supportive

Packaging Details: 120 pcs/reel,6 Reel=35*35*35 cm, 9KGS(720 pcs) /Carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    rj45 smt connector, surface mount rj45 connector


Specification:	J0C-0004NL	Part No:	LPJ19113CNL
Applications:	10/100 Base-T	Mounting Type:	Surface Mount
Termination:	Solder	Samples:	Available

Specification:	J0C-0004NL
Part No:	LPJ19113CNL
Applications:	10/100 Base-T
Mounting Type:	Surface Mount
Termination:	Solder
Samples:	Available

J0C-0004NL Surface Mount Rj45 Connector 10/100Base-T Jack LPJ19113CNL

J0C-0004NL Surface Mount Rj45 Connector 10/100Base-T Female Jack LPJ19113CNL

J0C-0004NL

Surface Mount Rj45 Connector

SMD Rj45 Connector

SMT Rj45 Jack

J0C-0004NL Pin to Pin / Equivalent / Alternate / Analogue

Surface Mount Rj45 Connector 10/100BaseT Without LEDs

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place androute on PCB.
♦ Conserves minimizing PCB space.

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C

Reflow-Soldering Optional;
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor

10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

11.Hipot:

1500Vrms MIN

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
