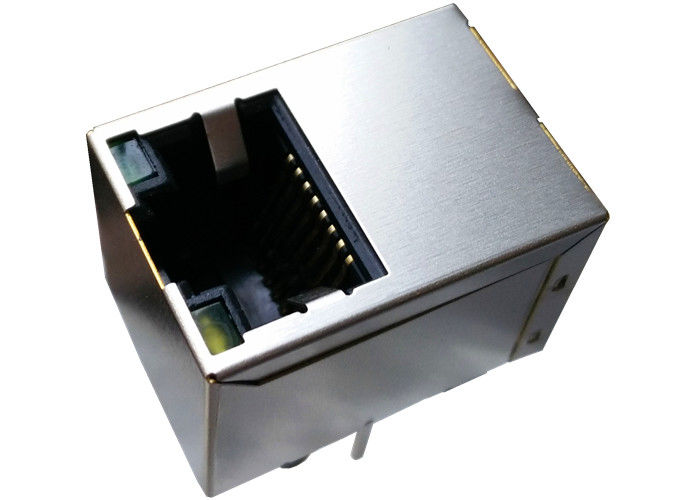

MJR11V2GYA0-G11U | LPJD0820BENL SMT RJ45 Connector 10/100/1000Base
Surface Mount Rj45 Connector
SMD Rj45 Connector
SMT Rj45 Jack
Surface Mount Rj45 Connector 10/100/1000BaseT
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place androute on PCB.
♦ Conserves minimizing PCB space.
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
Flexible delivery time
Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
