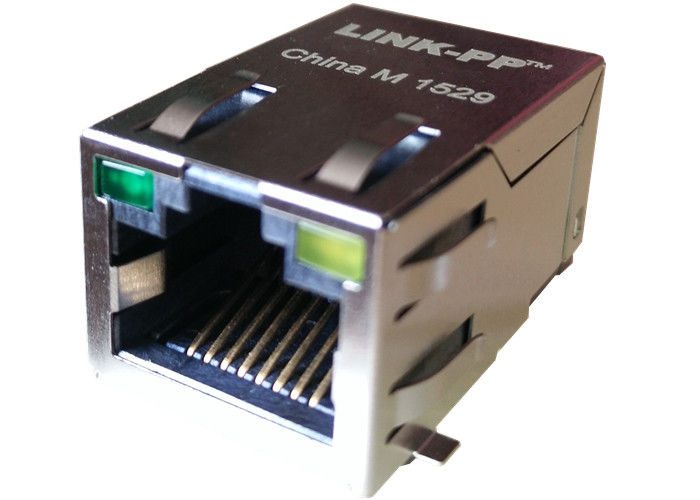

JX30-0005NL Surface Mount Rj45 Connector 10/100Base-T Female PCb Jack

Product Details

Place of Origin: GuangDong, China

Brand Name: LINK-PP

Certification: ISO9001,SGS,UL,CE,REACH

Model Number: JX30-0005NL

Payment & Shipping Terms

Minimum Order Quantity: 220

Price: Supportive

Packaging Details: 110pcs/Reel ,880pcs/cartons

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3000000/Month

Get Best Price
Highlight:

surface mount rj45 connector

,

ultra low profile jack

Specifications:
JX30-0005NL
P.N:
LPJ3005ABNL
Connector Type:
RJ45
Applications:
10/100 Base-T
Mounting Type:
Surface Mount
Orientation:
90~ Angle (Right)
Termination:
Solder
Shielding:
Shielded, EMI Finger
Specifications:
JX30-0005NL
P.N:
LPJ3005ABNL
Connector Type:
RJ45
Applications:
10/100 Base-T
Mounting Type:
Surface Mount
Orientation:
90~ Angle (Right)
Termination:
Solder
Shielding:
Shielded, EMI Finger
JX30-0005NL Surface Mount Rj45 Connector 10/100Base-T Female PCb Jack
JX30-0005NL Surface Mount Rj45 Connector 10/100Base-T Female PCb Jack

JX30-0005NL
Surface Mount Rj45 Connector
SMD Rj45 Connector
SMT Rj45 Jack

Pulse # JX30-0005NL Equivalent Part in China - LPJ3005ABNL
Surface Mount Rj45 Connector 10/100BaseT
♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place androute on PCB.
♦ Conserves minimizing PCB space.


MAG.REVERSE LATCH ,
LED optional ; EMI-finger Optional.

Description
JX30-0005NL Surface Mount Rj45 Connector 10/100Base-T Female PCb Jack
1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry SMD
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN

Applications For Terminal User



Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage



JX30-0005NL
18 years production experience,
2600 staff,
100% test
Flexible delivery time

Main Customer

Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......

EMS Application

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
