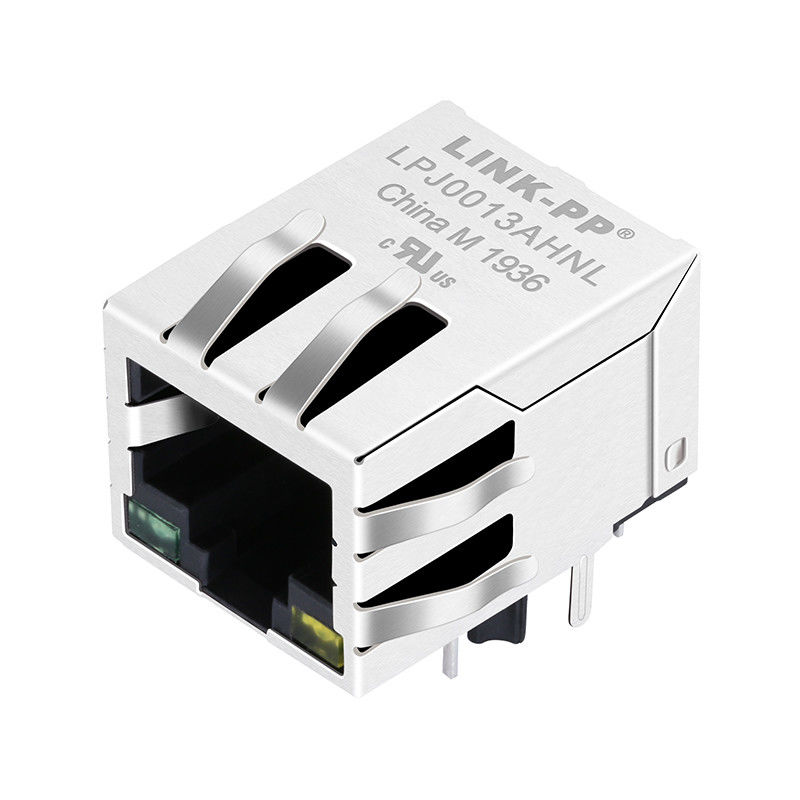

LPJ0013AHNL 10/100 Base-T Magnetic RJ45 Connnector with LED

The LINK-PP LPJ0013AHNL is a premium-grade RJ45 connector with integrated 10/100 Base-T magnetics. Engineered to meet strict IEEE 802.3 specifications, this modular jack provides superior signal integrity and network performance. It features an integrated EMI shield with spring fingers for excellent noise reduction, alongside built-in dual LEDs (Green/Yellow) for visual port status monitoring. Fully RoHS compliant (2011/65/EU) and UL Certified (File No. E484635), the LPJ0013AHNL is the ideal networking component for modern telecommunications and computing equipment.

Key Technical Specifications of LPJ0013AHNL MagJack

Electrical Performance of LPJ0013AHNL RJ45 with Magnetics

• Insertion Loss: -1.2 dB Max (1-100MHz)
• Return Loss: -16 dB Min (1-30MHz), -12 dB Min (30-60MHz), -10 dB Min (60-80MHz), -8 dB Min (80-100MHz)
• Cross Talk: -30 dB Min (1-100MHz)
• Common Mode Rejection: -30 dB Min (1-100MHz)

Material & Mechanical Properties

Built for durability and automated manufacturing, the LPJ0013AHNL uses top-tier materials:

• Housing: Thermoplastic PBT + 30% G.F (UL94V-0 Rated for fire safety)
• Contact Material: Phosphor Bronze (C5210R-EH), 0.35mm thickness
• Contact Plating: 6 micro-inches Min. Gold in contact area for reliable mating cycles
• Shielding: SUS 304-1/2H Stainless Steel, 0.2mm thickness with EMI spring fingers
• Solderability: Compatible with Wave Soldering (Tip temperature: 250°C for 5 Seconds)

Applications of LPJ0013AHNL RJ45 Connnector with LED

Designed for versatile networking applications, this magnetic RJ45 jack is perfectly suited for:

• SOHO Equipment (e.g., ADSL Modems)
• LAN-on-Motherboard (LOM) Configurations
• Network Hubs and Switches
• Industrial PCs and Embedded Systems

LPJ0013AHNL RJ45 Connnector Datasheet (PCB Layout & Schematic)

For precise PCB design, including exact pin configurations, footprint dimensions, and electrical schematics, please refer to the official LINK-PP datasheet.
