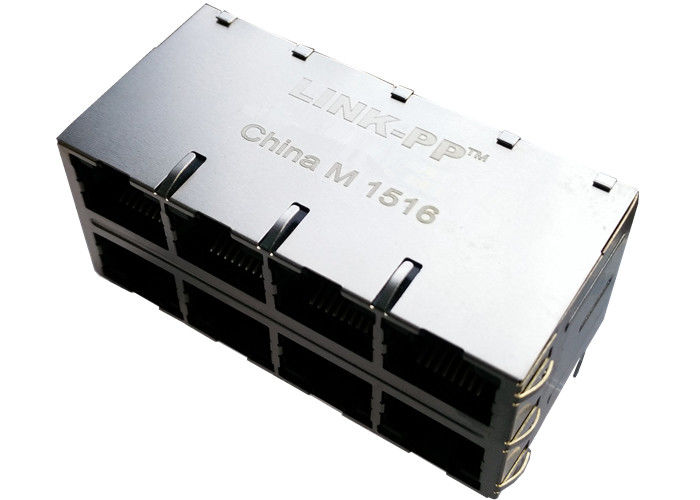

85727-1004 / 85727-1006 / 85727-1008 Gigabit Magnetic Jack 2X4, LEDs Green and Orange/Green and Orange
General Specifications
| Parameter | Value |
|---|---|
| Category | Modular Jacks and Plugs |
| Description | Gigabit Magnetic Jack 2x4, LEDs Green and Orange/Green and Orange |
| Comments | With LED |
| Component Type | PCB Jack |
| Magnetic | Yes |
| Performance Category | Cat 5, Cat 5e |
| Power over Ethernet (PoE) | Non-PoE |
| Product Name | Magnetic Jack, RJ45 |
| Component | Material | Plating / Notes |
|---|---|---|
| Shield | Brass | Nickel pre-plating |
| Plastic Housing | Polyester (PBT), Black, 30% Glass Reinforced | UL 94V-0 flame retardant rating |
| RJ45 Terminals | Copper Alloy | Contact Area: 0.76 μm Gold over 1.9 μm Nickel |
| PHY Terminals | — | Tin plated |
| Parameter | Value |
|---|---|
| Current - Max per Contact | 1.5 A |
| Voltage - Maximum | 125V AC (RMS) |
| Grounding to Panel | Panel Ground Tab |
| Grounding to PCB | Yes |
| Shielded |
Yes |
| Parameter | Value |
|---|---|
| Durability (Mating Cycles Max) | 750 |
| Inverted / Top Latch | Yes |
| Jack Height | 25.43 mm |
| Lightpipes / LEDs | LEDs |
| Net Weight | 42.060 g |
| Orientation | Right Angle (Side Entry) |
| Packaging Type | Tray |
| PCB Retention | N/A |
| PCB Thickness - Recommended | 2.20 mm |
| Pitch - Mating Interface | 1.02 mm |
| Plating Min - Mating | 0.762 µm |
| Port Configuration | 2x4 |
| Positions / Loaded Contacts | 8/8 |
| Temperature Range - Operating | 0°C to +70°C |
| Termination Interface Style | Through Hole |
| Wire / Cable Type |
CAT 5, CAT 6 |
| LINK-PP RJ45 Connectors cross the following part number. Please contact us for details | |||
|---|---|---|---|
| 85510-5126 | 85727-1003 | 85728-1002 | 85728-1012 |
| 85510-5127 | 85727-1004 | 85728-1003 | 85728-1014 |
| 85510-5128 | 85727-1006 | 85728-1004 | 85793-1006 |
| 85543-7003 | 85727-1008 | 85728-1006 | 85727-1002 |
| 85586-1003 | 85727-1012 | 85728-1008 | 85727-1001 |
| 85586-1005 | 85727-1013 | 85728-1001 | 85719-0003 |
