615008140621 RJ45 Modular Jack Shielded w. EMI-Finger 8P8C , 615008140121

615008140621 RJ45 Modular Jack Shielded w. EMI-Finger 8P8C , 615008140121
615008140621 RJ45 Modular Jack Shielded w. EMI-Finger 8P8C , 615008140121 615008140621 RJ45 Modular Jack Shielded w. EMI-Finger 8P8C , 615008140121

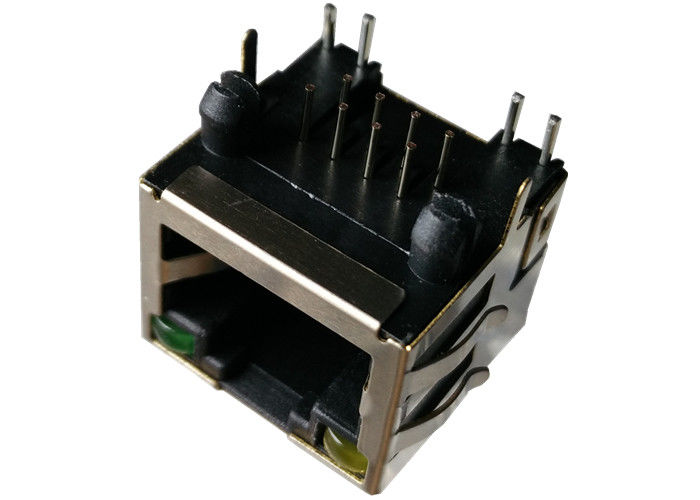

Large Image :  615008140621 RJ45 Modular Jack Shielded w. EMI-Finger 8P8C , 615008140121

Product Details:
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJ45 Modular Jack
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Contact Now
Detailed Product Description
Product Category: WE-RJ45 Modular Jack Cable System: Cat 5/5e
USOC Codes: RJ45 Termination Style: Through Hole/SMT
Contact Plating: Gold Gender: Female
Termination: Solder Samples: Available Free
High Light:

modular jacks rj45

,

industrial rj45 connector

615008140621 RJ45 Modular Jack Shielded w. EMI-Finger 8P8C , 615008140121

615008140621 /  615008140121
 RJ45 Modular Jack
 8P8C
Shielded w. EMI-Finger




TECHNICAL CHARACTERISTICS
INSULATOR: PBT
FLAMMABILITY RATING: UL94-V0
COLOR: BLACK
CONTACT MATERIAL: PHOSPHOR BRONZE
CONTACT TYPE: STAMPED
CONTACT PLATING: GOLD
SHIELDING: BRONZE NI PLATED
QUALITY CLASS: 500 MATING CYCLES
ENVIRONMENTAL
OPERATING TEMPERATURE: -40 TO 85°C
COMPLIANCE: LEAD FREE AND ROHS
ELECTRICAL
CURRENT RATING: 1.5A
WORKING VOLTAGE: 120VAC
INSULATOR RESISTANCE: >1000 MΩ
DIELECTRIC WITHSTANDING VOLTAGE: 1000 VAC/MIN
CONTACT RESISTANCE: 20 mΩ MAX
STANDARD
CERTIFIED: E324776
SOLDERING:
JEDEC LEAD FREE WAVE SOLDERING PROCESS
PACKAGING :TRAY
Applications For Terminal User
Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...



EMS Application
Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly



615008140621 RJ45 Modular Jack Shielded w. EMI-Finger 8P8C , 615008140121 0

615008140621 RJ45 Modular Jack Shielded w. EMI-Finger 8P8C , 615008140121 1

Other Compatible List

615008140621 RJ45 Modular Jack Shielded w. EMI-Finger 8P8C , 615008140121
615008137421
615008149521L
615008145121
634008149821
615016137621
615008149521R
615016240521
634008149721
634008137521
615012149421
615008148521
615008138221
615008138321
615024149521
615008140121
615008140621
615008145121
615032149521
615008145121
615008142621
634108149621
615008140421
615008140121
615008140121
634108149621
615008145221
615008140121
615008137121
61500814221
615008138021
615016240521
615008143721
615008138221
615008144221
634008137521
615008148521
615008140121
615008140621
634008149721
615008142621
615008140621
615008145121
615008140621
615008140621
615008142621
615008140121
615008140621
615008142621
615008143721
615008142621
615008140121
615008145121
615008145121
615008140621
615008140621
615008145121
