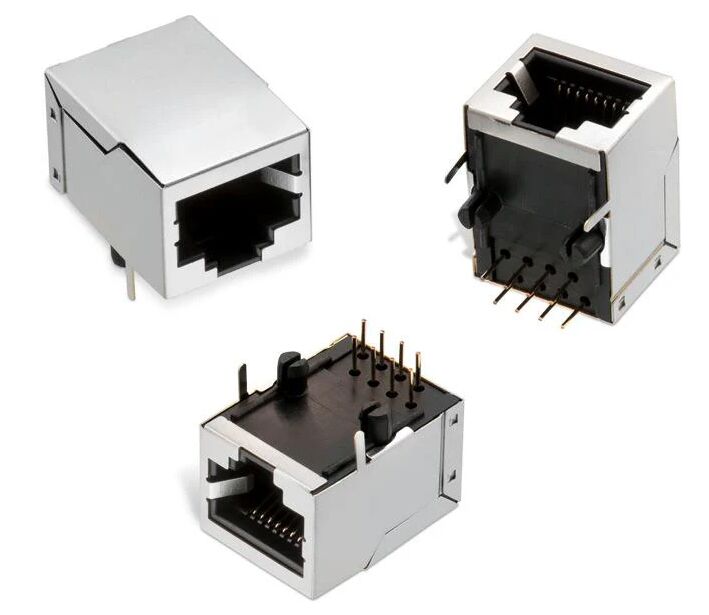

61500814221 THT Cat 3 Modular Jack Shielded 8P8C Without EMI Finger

High-quality 615008138221 THT Cat 3 modular jack with shielded 8P8C, TAB down, rated 1.5A, 120V AC. Durable, reliable, perfect for CAT 3 network systems.

61500814221 RJ45 Modular Jack Overview

The 615008138221 THT Cat 3 Modular Jack is designed for reliable CAT 3 network connections. With its shielded 8P8C configuration, horizontal 1x1 port layout, and TAB-down design, this modular jack provides stable signal integrity and a long service life. Ideal for telecommunications and low-speed data applications, it ensures consistent performance under various operating conditions.

Through this product page, you will learn the key technical specifications, performance benefits, and why this modular jack is a top choice for CAT 3 network systems.

Key Features

• Number of Pins: 8P8C
• Port Layout: 1x1 horizontal
• Shielding: Bronze material with nickel plating
• Contact: Copper alloy with gold plating, stamped type
• TAB Direction: Down
• Durability: 500 mating cycles
• Rated Current: 1.5 A
• Working Voltage: 120 V AC
• Operating Temperature: -40 °C to +85 °C
• Insulator Material: PBT, UL94 V-0 rated, black color
• No EMI Fingers: Reduces electromagnetic interference

Electrical and Mechanical Specifications of 61500814221 8P8C Jack

61500814221 Datasheet

1. 615008138221 Datasheet - Dimensions

2. 615008138221 Datasheet - Recommended Hole Pattern

61500814221 Shielded RJ45 Jack Material and Construction

• Insulator: PBT, black, flame-resistant (UL94 V-0)
• Contacts: Copper alloy with gold plating for low resistance and reliable connectivity
• Shielding: Bronze with nickel plating for enhanced EMI protection

Why Choose 615008138221?

• High Reliability: Designed for up to 500 mating cycles without degradation
• Durable Materials: Flame-resistant insulator and corrosion-resistant contacts
• Enhanced EMI Protection: Shielding ensures stable signal performance
• Wide Temperature Range: Suitable for industrial and commercial installations
