000-7333-30R-LF1 POE Transformer 10/100Base-T Transformer Modules

large.img.alt
large.img.alt
video play

Large Image :  000-7333-30R-LF1 POE Transformer 10/100Base-T Transformer Modules

Product Details:
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: 000-7333-30R-LF1
Payment & Shipping Terms:
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Detailed Product Description

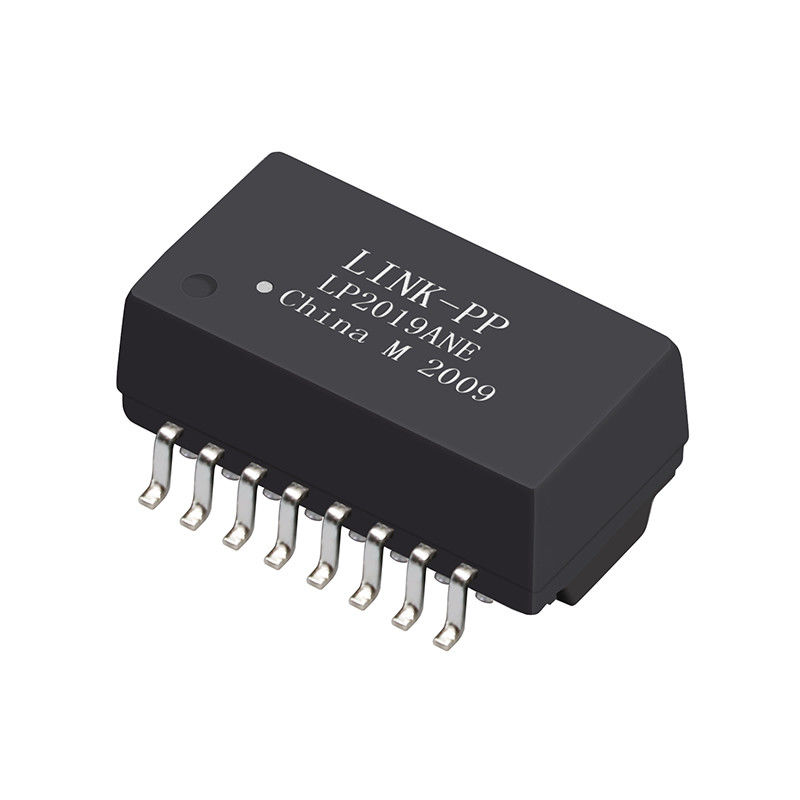

Part Number: 000-7333-30R-LF1 Transformer Type: DATACOM TRANSFORMER
Turns Ratio - Primary:Secondary: 1 : 1 Transmitter, 1 : 1 Receiver Mounting Type: Surface Mount
Size / Dimension: 12.95 Mm Height - Seated (Max): 5.23 Mmx7.11 Mm
Application: 10/100 BASE-T; AUTOMDIX Archivi Disponibil: PDF/3D/ISG/Stp/Step/Datasheet
High Light:

power over ethernet transformer

,

poe magnetics

000-7333-30R-LF1 POE Transformer 10/100Base-T Transformer Modules

000-7333-30R-LF1  POE Transformer  10/100Base-T Transformer Isolated Transformer



1. Design For 10/100Base-T Power over ethernet Applications.
2. Low Profile Surface Mount Packaging Designed Reflow Process ( 250°C peak ).
3. Compliant With IEEE 802ab draft standards for 1000Base-T.
4. Supports 4 Pairs Of Category 5 UTP Cable.
5. For RoHS Part Add Suffix G.

6. Design Part Number: 【000-7333-30R-LF1】

7. Mass Production Part Number 【LP2019ANL】




Electrical Specifications (25)

000-7333-30R-LF1 POE Transformer 10/100Base-T Transformer Modules

1. Turns Ratio50KHz, 0.5V

    Chip side: Line side=1CT: 1CT+_2%

2. Inductance (Ls) 100KHz, 0.1V, 12mA DC Bias:

    Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

             60MHz: -35dB Min

             100MHz: -30dB Min

7. Hi-Pot: 1500Vrms, 0.5mA, 1Sec

    Chip side to Line side

Applications For Terminal User

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...

Competitive Advantage



18 years production experience,

2600 staff,

100% test

Flexible delivery time

Main Customer



Design for Ti , Intel , Samsung ,  Fluke , Jabil  , Flextronics ,Cypress, Freescale,EKF.......



EMS Application



Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly

Other Replaceable List
