Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 1-1368398-3 / 2-1368398-3
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.08-$1.79
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 2800K-PCS/Month
Part Number: |
1-1368398-3 / 2-1368398-3 |
Series: |
1368398-X |
Connector Type: |
Low Profile RJ45 Connector |
Speed: |
Gigabi |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Part Number: |
1-1368398-3 / 2-1368398-3 |
Series: |
1368398-X |
Connector Type: |
Low Profile RJ45 Connector |
Speed: |
Gigabi |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |

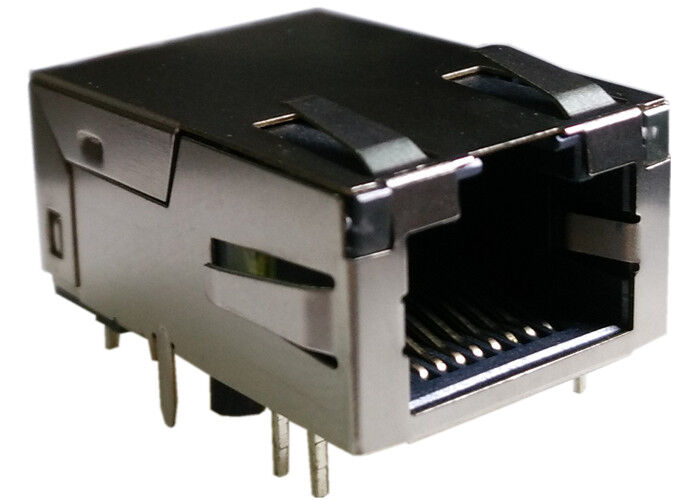

| Type | 1368398-3 RJ45 Connector |
| Gender | Female |
| Number of Terminals | 12 |
| Number of Contacts | 8 |
| Number of Ports | 1 |
| Number of Loaded Positions | 8 |
| Termination Method | Solder |
| Terminal Pitch | 2.03 mm |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Left/Right LED Color | (Green|Orange)/Yellow |
| Integrated Magnetics | Yes |
| Shell Material | Brass |
| Shell Plating | Semi Bright Nickel |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | 70°C |
| Product Length | 17.78 mm |
| Product Depth | 24.13 mm |
| Product Height | 11.3 mm |
| Packaging | Reel |
1. HOUSING: HIGH-TEMPERATURE NYLON.BLACK, UL 94V-00.
2. SHIELD: 0.2OmM THICK BRASS PREPLATED WITH 1.27 UM MIN SEMI-BRIGHT NICKEL, POST-DIPPED WITH 2 Um MIN SAC ALLOY LEAD FREE SOLDER.
3. CONTACT TAILS: 0.25mM THICK, PHOSPHOR BRONZE, 1.27 UM MIN OVERALL NICKEL UNDERPLATE. 3Um MIN TIN PLATE.
4. MOD JACK CONTACTS: 0.25mM THICK, PHOSPHOR BRONZE, 1.27 UM MIN OVERALL NICKEL UNDERPLATE. WITH 0.76UM OR .27UM MIN LOCALIZED GOLD PLATE AT PLUG INTERFACE
5. LIGHT PIPE: POLYCARBONATE
With over 20 years of experience, LINK-PP is a trusted brand in RJ45 connector manufacturing. With 2,600 employees, LINK-PP implements strict 100% testing requirements to ensure product quality and flexible delivery time. Well-known customers include industry giants such as Texas Instruments (TI), Intel, Samsung, Fluke, Jabil, Flextronics, Cypress, Freescale, and EKF. As a leading partner in the electronics industry, LINK-PP has been committed to providing global customers with technical support and custom design services.
