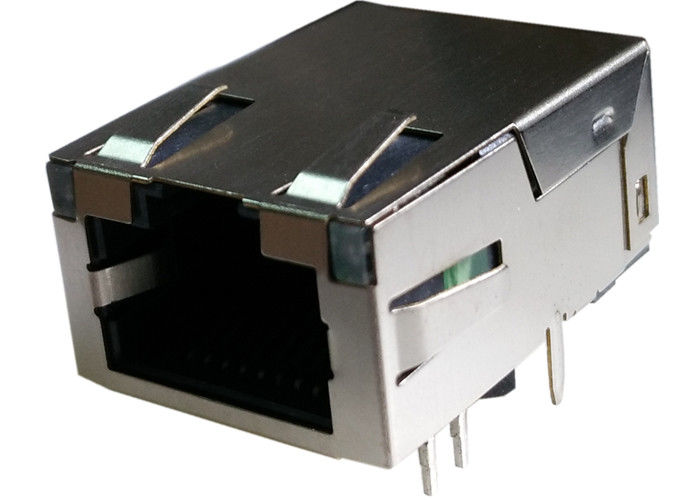

1840718-1 Low-Profile RJ45 Jack PCB Gigabit 10/100/1000 Lan Magnetic 1-1840718-0

China 1840718-1 Low-Profile RJ45 Jack PCB Gigabit 10/100/1000 Lan Magnetic 1-1840718-0 supplier

Large Image :  1840718-1 Low-Profile RJ45 Jack PCB Gigabit 10/100/1000 Lan Magnetic 1-1840718-0

Product Details:

Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: ISO 9001,ISO 14001,UL,SGS,REACH168
Model Number: 1840718-1 / 1-1840718-0

Payment & Shipping Terms:

Minimum Order Quantity: 200/500/1200
Price: Supportive
Packaging Details: 60pcs/tray,or Reel Package
Delivery Time: Stock or 4-5 weeks
Payment Terms: TT,Paypa,West Union
Supply Ability: 2800K-PCS/Month
Contact Now
Detailed Product Description
Part Number: 1840718-1 / 1-1840718-0 Specifications: 1840718-1 / 1-1840718-0
Connector Type: Gigabit Low Profile Applications: 10/100/1000 Lan
Mounting Type: Through Hole Orientation: 90~ Angle (Right)
Termination: Solder Shielding: Shielded EMI

1840718-1 Low-Profile RJ45 Jack PCB Gigabit 10/100/1000 Lan Magnetic 1-1840718-0


1840718-1 / 1-1840718-0 Low Profile Rj45 Low Profile Rj45 PCB 10/100/1000  Low Profile Rj45



Designing Model: 【1840718-1 / 1-1840718-0



♦ 1840718-1 Low Profile TE Magjack
♦ Low Profile Rj45 plug 1-1840718-0
♦1000Base-T Low Profile Rj45 With Magnetics
♦ Low Profile Rj45 PCB 1-1840718-0
♦ Low Profile Rj45 10/100/1000 With Magnetics
♦ low profile Rj45 connector 1840718-1

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.

♦ Mass Production Model:【LPJXXXXNL】



MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.


Description

1840718-1 Low-Profile RJ45 Jack PCB Gigabit 10/100/1000 Lan Magnetic 1-1840718-0

1. Product Type Features:
  1) Product Type = Connector
  2) Jack Type = RJ45
  3) Profile = Standard
  4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
  1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
  1) Shielded = Yes
4. Termination Related Features:
  1) EMI Finger - Bottom = Without
  2) Termination Method = Solder
5. Body Related Features:
  1) Port Configuration = Single/Multi
  2) EMI Fingers -Top and Sides = With/ Without
  3) Latch Orientation = Standard - Latch Down
  4) PCB Tail Length
6. Contact Related Features:
  1) Preloaded = Yes
  2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
  1) Connector Style = Jack
8. Industry Standards:
  1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
  2) Lead Free Solder Processes = Wave solder capable to 240°C,
      Wave solder capable to 260°C, Wave solder capable to 265°C
      Reflow-Soldering Optional;
  3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
  1) Left LED Color (Position #1) = Green - 250 ohm resistor
  2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
  1) Applies To = Printed Circuit Board
  2) Environmental Conditions = Office / Premises
  3) Operating Temperature (°C ) = 0 - 70/-40 - +85
11.Hipot:
     1500Vrms MIN Or More

Ethernet Applications


Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...
