Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 2-1840269-7
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: XX pcs/ tray,XX tray /carton/37*30*30 cm,XX pcs/ carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
2-1840269-7 / 1840269 |
LINK-PP P/N: |
LPJG47011AENL |
Connector Type: |
Gigabit PoE+ RJ45 Connectors |
Number Of Ports: |
2x4 |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Part Number: |
2-1840269-7 / 1840269 |
LINK-PP P/N: |
LPJG47011AENL |
Connector Type: |
Gigabit PoE+ RJ45 Connectors |
Number Of Ports: |
2x4 |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |

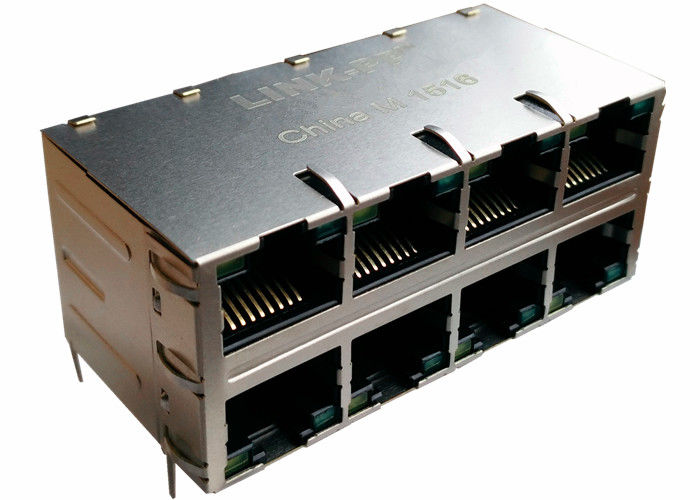

2-1840269-7 POE RJ45 Connector 2x4 MAG45 Gigabit Circuit 1840269
|
2-1840269-7 Datasheet |
Stacked RJ45 1840269 |
Gigabit 2x4 Lan Port |
Rj45 Stacked POE+ |
The 2-1840269-7 / 1840269 is a stacked 2x4 RJ45 PoE+ connector designed for high-performance Gigabit Ethernet (10/100/1000Base-T) applications. It supports IEEE 802.3at PoE+, making it ideal for network interface cards, switches, routers, and other networking and communication equipment.
Key Highlights:
| Feature | Specification |
|---|---|
| Product Type | Connector, Female RJ45 to Ethernet |
| Profile | Standard or Low Profile |
| PCB Mounting Orientation | Side Entry (Right Angle) / Top Entry (Vertical) |
| Jack Configuration | 2 x 6 |
| Shielding | Shielded / Unshielded |
| EMI Finger | Optional (Top / Side) |
| Termination Method | Through Hole / Surface Mount / Soldering |
| Port Configuration | Single / Multi / Stacked |
| Latch Orientation | Standard, Latch Down |
| Preloaded Contacts | Yes |
| RoHS / ELV Compliance | Yes |
| Lead-Free Solder Process | Wave solder: 240°C / 260°C / 265°C, Reflow solder: 245°C |
| LED Indicators | Left: Green, Right: Yellow |
| Operating Temperature | 0°C to 70°C (standard), -40°C to +85°C (extended) |
| Hi-Pot | 1500 Vrms Minimum |
| PoE Support | Yes (IEEE 802.3at) |
Designed for high-density networking environments, including:
