Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 0826-1D2T-23 / 0826-1D2T-23-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.11-$12
Packaging Details: Tray
Delivery Time: About 1-2 Days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 208K/Month
Part Number: |
0826-1D2T-23 / 0826-1D2T-23-F |
Connector Type: |
RJ45 Multi Port Jack |
Number Of Ports: |
1x2 Dual Port |
Applications: |
10/100/1000 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Part Number: |
0826-1D2T-23 / 0826-1D2T-23-F |
Connector Type: |
RJ45 Multi Port Jack |
Number Of Ports: |
1x2 Dual Port |
Applications: |
10/100/1000 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |

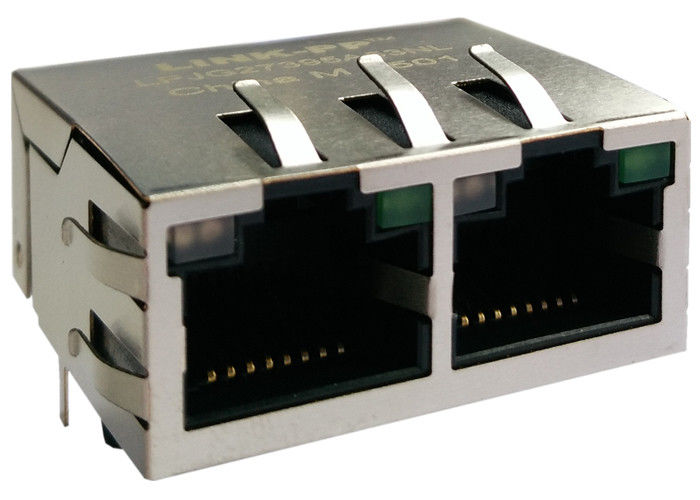

The 0826-1D2T-23 and 0826-1D2T-23-F are high-performance dual-port (1x2) RJ45 Magjack designed for 10/100/1000Base-T Gigabit Ethernet applications. With integrated magnetic components, optional LEDs, and EMI shielding, these connectors are optimized for space-saving, reliable, and cost-effective PCB integration in networking and telecommunication equipment.
| Parameter | Condition / Frequency | Specification |
|---|---|---|
| Turns Ratio | — | 1CT : 1CT ±3% |
| OCL | 100 kHz, 0.1 V, 8 mA Bias | 350 µH MIN |
| Insertion Loss | 1 – 100 MHz | -1.1 dB MAX |
| Return Loss | 1 – 40 MHz | -18 dB MIN |
| 60 MHz | -14 dB MIN | |
| 80 MHz | -12 dB MIN | |
| 100 MHz | -10 dB MIN | |
| Crosstalk | 1 – 100 MHz | -40 dB MIN |
| CMR | 1 – 100 MHz | -40 dB TYP |
| Isolation Voltage | — | 1500 Vrms |
The 0826-1D2T-23 series is widely used in:
