Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: 0826-1X2T-23-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $1.1-$5.19
Packaging Details: Tray
Delivery Time: Within 2-3 days
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000K/Month
Part Number: |
0826-1X2T-23-F |
Number Of Ports: |
Dual-port (1×2) |
Connector Type: |
Gigabit Magjack |
Applications: |
10/100/1000 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |
Part Number: |
0826-1X2T-23-F |
Number Of Ports: |
Dual-port (1×2) |
Connector Type: |
Gigabit Magjack |
Applications: |
10/100/1000 Base-T |
Mounting Type: |
Through Hole |
Orientation: |
90～ Angle (Right) |
Termination: |
Solder |
Shielding: |
Shielded, EMI Finger |

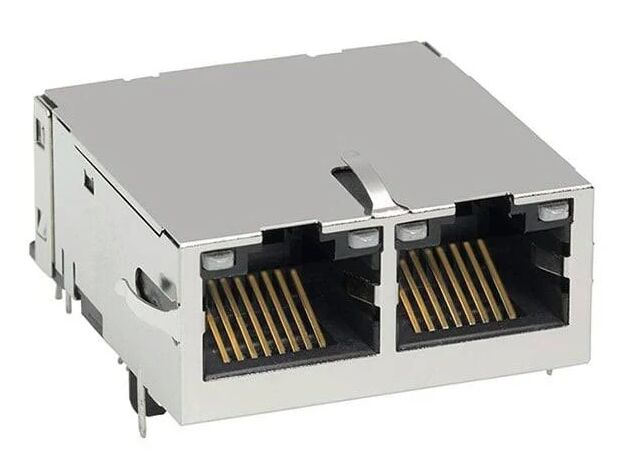

0826-1X2T-23-F Gigabit MagJack dual-port RJ45 connector with integrated magnetics, 12 cores, EMI shielding, 1500Vrms isolation, and LED indicators for 10/100/1000Base-T Ethernet networking equipment.
The 0826-1X2T-23-F Gigabit MagJack is a dual-port (1×2) RJ45 connector with integrated Ethernet magnetics, designed for 10/100/1000Base-T Gigabit Ethernet applications.
This shielded right-angle through-hole RJ45 MagJack integrates LAN transformers, common-mode filtering, and dual LEDs, enabling simplified PCB design while ensuring excellent signal integrity, EMI suppression, and IEEE 802.3 compliant isolation performance.
With 12 cores per port and tab-up orientation, the 0826-1X2T-23-F is widely used in networking equipment such as Ethernet switches, routers, network interface cards (NICs), and industrial Ethernet devices.
| Parameter | Specification |
|---|---|
| Part Number | 0826-1X2T-23-F |
| Connector Type | RJ45 MagJack |
| Port Configuration | 1 × 2 (Dual Port) |
| Ethernet Speed | 10/100/1000Base-T |
| Applications | Ethernet LAN, Auto-MDIX |
| Mounting Type | Through Hole |
| Orientation | Right Angle (90°) |
| Termination | Solder |
| Height Above PCB | 13.59 mm |
| LED Color | Green / Orange / Yellow |
| Tab Direction | Up |
| Number of Cores per Jack | 12 |
| Shielding | Shielded with EMI Finger |
| Packaging | Tray |
| Operating Temperature | 0°C to +70°C |
| Parameter | Specification |
|---|---|
| Turns Ratio | 1CT : 1CT ±2% (TP1-TP4) |
| Inductance (OCL) | ≥350 µH @100kHz, 100mV RMS |
| Frequency | Max Loss |
|---|---|
| 0.1–1 MHz | −1.1 dB |
| 1–65 MHz | −0.5 dB |
| 65–100 MHz | −0.8 dB |
| 100–125 MHz | −1.2 dB |
| Frequency | Min |
|---|---|
| 0.5–40 MHz | −18 dB |
| 40–100 MHz | −12 + 20log(f/80MHz) dB |
| Parameter | Specification |
|---|---|
| CM-CM Rejection | ≥ −30 dB (100kHz–100MHz) |
| CM-DM Rejection | ≥ −35 dB (100kHz–100MHz) |
| Parameter | Specification |
|---|---|
| Hipot | 1500 Vrms |
| Compliance | IEEE 802.3 Isolation Requirement |
All units are 100% production tested to ensure compliance with Ethernet isolation standards.
| Parameter | Value |
|---|---|
| Forward Voltage | 2.1 V typ @20mA |
| Dominant Wavelength | 590 nm typ |
| Color | Forward Voltage | Dominant Wavelength |
|---|---|---|
| Green | 2.2 V typ | 565 nm |
| Orange | 2.0 V typ | 610 nm |
| Component | Material |
|---|---|
| Housing | PBT Thermoplastic |
| Flammability Rating | UL94-V0 |
| Contacts | Copper Alloy |
| Contact Plating | 30 µin Hard Gold |
| Shield | Nickel-plated Copper Alloy |
| Wire | Tin-coated Copper Wire (0.018") |
A Gigabit MagJack is an RJ45 connector that integrates Ethernet magnetics (transformers and common-mode chokes) inside the connector housing, simplifying PCB design for Ethernet devices.
The connector supports 10Base-T, 100Base-TX, and 1000Base-T Ethernet applications compliant with IEEE 802.3 standards.
The integrated magnetics provide 1500Vrms isolation, meeting the Ethernet safety requirements defined by IEEE 802.3.
The connector is designed for 0°C to +70°C operating temperature, suitable for commercial networking equipment.
