Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: 1840434-4 / 1840434-6
Payment & Shipping Terms
Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Number Of Ports: |
Single Port |
LED: |
Optional |
Ethernet Type: |
Gigabit Ethernet |
Profile: |
Standard |
Mounting Type: |
Through Hole |
Orientation: |
Right-Angle (90°) |
Termination: |
Solder |
Shielding: |
Shielded With EMI Finger |
Number Of Ports: |
Single Port |
LED: |
Optional |
Ethernet Type: |
Gigabit Ethernet |
Profile: |
Standard |
Mounting Type: |
Through Hole |
Orientation: |
Right-Angle (90°) |
Termination: |
Solder |
Shielding: |
Shielded With EMI Finger |

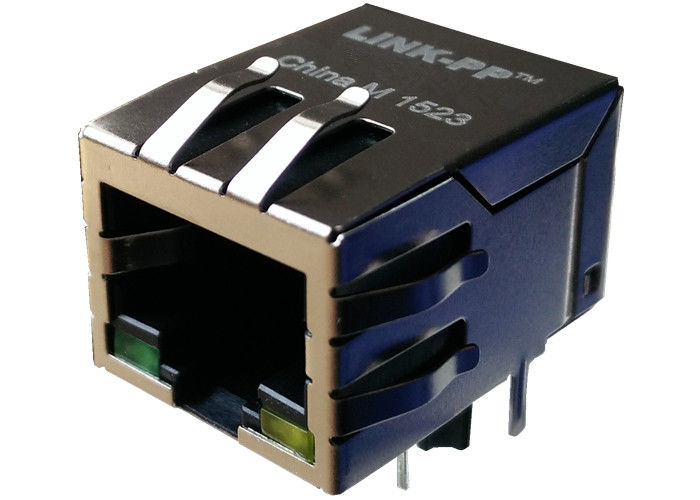

♦ LINK-PP single-port RJ45 Magnetic Jack support Gigabit Ethernet.
♦ TE 1840434 Series Modular Connectors provide multiple color LEDs to meet design requirements.
♦ Designed to meet IEEE802.3, IEEE802.3u, IEEE802.3ab requirement.
♦ EMI finger on top and sides enhanced interference shielding.
♦ Improve corrosion resistance with thicker gold plating.
♦ Expanded temperature range from 0°C to +70°C for wider industrial use.
♦ Tab Down RJ45 Jacks with Integrated Magnetics.
♦ high reliability, corrosion resistance, and long lifetime.
| Physical Attributes | |
|---|---|
| Product Gender | Female Connector RJ45 |
| Shielding Type | EMI Finger |
| Pin Type | Solder |
| PCB Mounting Orientation | Side Entry (Right Angle) / Top Entry (Vertical) |
| Mechanical Attachment | |
| Port Configuration | 1 x 1 |
| Latch Orientation | Standard - Tab Down |
| Termination Related Features | |
| EMI Finger Position | Top and Side |
| Termination Method | Soldering |
| Contact Related Features | |
| Preloaded | Yes |
| Contact Termination Type | Through Hole |
| Industry Standards | |
| RoHS/ELV Compliance | RoHS-compliant, ELV-compliant |
| Lead-Free Solder Processes | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder capable to 265°C, Reflow-Solder capable of 245°C |
| Identification Marking | |
| Left LED Color (Position 1) | Green |
| Right LED Color (Position 2) | Yellow |
| Conditions for Usage | |
| Applies To | Printed Circuit Board |
| Environmental Conditions | Office / Premises |
| Operating Temperature (°C) | 0 - 70 / -40 - +85 |
| Hipot | 1500Vrms MIN |
| Power Over Ethernet | With Or Without |
| 10 100 1000base t gigabit ethernet rj 45 connector | |||
|---|---|---|---|
| 1840434-4 | Magnetic RJ45 Jack | 10Pin Gigabit Rj45 | 1840434-6 |
| 0817-1G1T-21 | 1840710-1 | 1-1840434-0 | 0826-1Z1T-23-F |
| 1840434-1 | 1-1840434-0 | 0826-1Z1T-23-F | 1840434-1 |
| 1840434-4 | 1840434-2 | 1840434-6 | 2-1840461-1 |
| 1840434-1 | 1-1840461-8 | 1840434-3 | 1-1840461-1 |
| 85793-1003 | 0826-1Z1T-23 | 0826-1G1T-29-F | 203351 / 203352 |
| 1-1840461-1 | 1840434-4 | 85793-1020 | 85793-1003 |
| 1840434-4 | 1-1840434-0 | 1-1840434-0 | 85793-1010 |
| 1840434-1 | 1840434-2 | RJMG-6315-71-01 | 1-1840461-1 |
| 85793-1014 | 1840461-1 | 3-1840461-1 | 1840434-3 |
| 1-1840461-1 | 85793-1014 | 0813-1X1T-43 | RJHSE-5080 |
| 1840434-4 | 1840434-1 | 1-1840434-0 | 2-1840461-1 |
| 1-1840461-8 | 1-1840461-8 | RJMG-7300-31-01 | 0817-1G1T-21 |
| 0810-1X1T-01 | 1840434-2 | 1840434-3 | 2-1840461-1 |
| 1840434-1 | 0810-1X1T-01 | 3-1840461-1 | 1840434-1 |
| 1840434-2 | 1840461-1 | 1840434-6 | 0826-1G1T-29-F |
| 3-1840461-1 | 1840434-6 | 1-1840461-1 | 0826-1Z1T-23-F |
| LMJ3078814J10816 | 1840434-3 | 1840434-6 | 85793-1020 |
| 3-1840461-1 | 1-1840461-8 | RJMG-B312-71-01 | 1840434-6 |
| 85793-1007 | 1840434-2 | 0810-1X1T-02 | RJHSE-5082 |
| 0810-1X1T-01 | 1840461-1 | 1840434-3 | 0826-1Z1T-23-F |
| 1840434-4 | 0810-1X1T-02 | 1840434-6 | 1840434-3 |
