Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: LP6096ANL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specification: |
LP6096ANL |
Transformer Type: |
PoE+ Gigabit Ethernet |
Turns Ratio: |
1 : 1 Transmitter, 1 : 1 Receiver |
Mounting Type: |
Surface Mount |
Size / Dimension: |
17.53mm L X16.10mm W |
Height - Seated (Max): |
5.840 Mm |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Temperature: |
-40℃ TO +85°C |
Specification: |
LP6096ANL |
Transformer Type: |
PoE+ Gigabit Ethernet |
Turns Ratio: |
1 : 1 Transmitter, 1 : 1 Receiver |
Mounting Type: |
Surface Mount |
Size / Dimension: |
17.53mm L X16.10mm W |
Height - Seated (Max): |
5.840 Mm |
Files: |
PDF/3D/ISG/Stp/Step/Datasheet |
Temperature: |
-40℃ TO +85°C |
| Cross | LP6096ANL | HX6096NL | HX6098FNL | HX6015NL | H6096NL | HX6098NL |

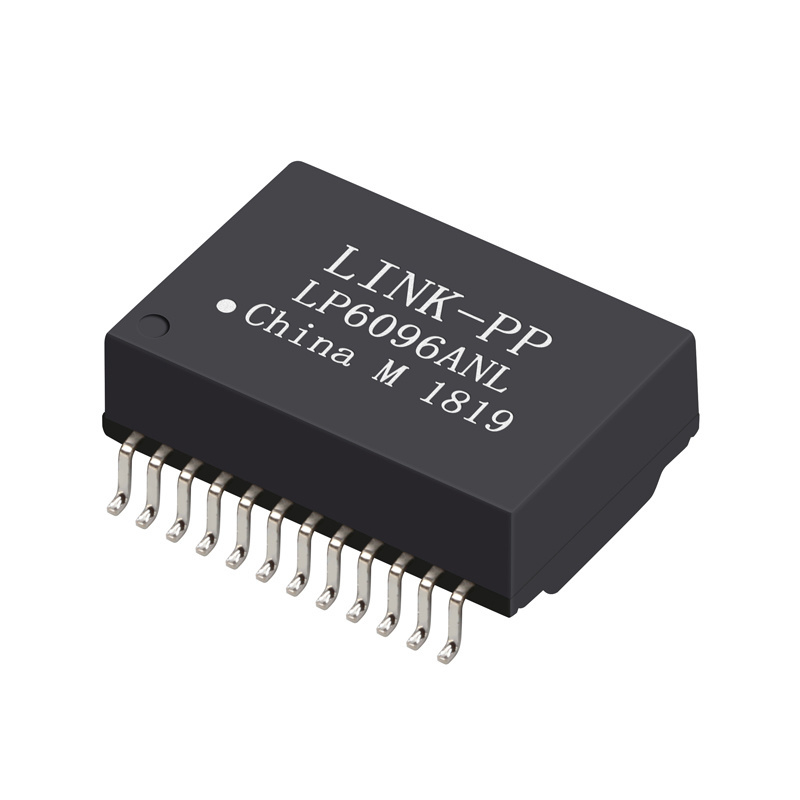

The LP6096ANL is a high-performance single-port Gigabit Ethernet magnetic transformer, designed for 1000BASE-T PoE+ applications. Engineered to deliver reliable data throughput, power over Ethernet compatibility, and compact surface-mount form factor, it is ideal for modern networking products like PoE switches, routers, embedded IoT devices, and industrial Ethernet systems.
| Item | Specification |
|---|---|
| Turns Ratios | Pri:Sec = 1CT:1CT |
| OCL | 350µH Min @ 8mA DC Bias220µH Max @ 18mA DC Bias |
| Insertion Loss (dB Max) | 0.1MHz: -1.21–125MHz: -2.0 |
| Return Loss (dB Min) | 1–40MHz: -1640–100MHz: -10 |
| Crosstalk (dB Min) | 30MHz: -4360MHz: -37100MHz: -33 |
| CMRR (dB Min) | 30MHz: -30200MHz: -15 |
| DCR Balance | 1Ω ± 0.05Ω |
| Balance DC Line Current | 720mA Max @ 57VDC Continuous |
| Hipot | 1500Vrms |
| Operating Temperature | -40℃ ~ +85℃ |
Schematic
