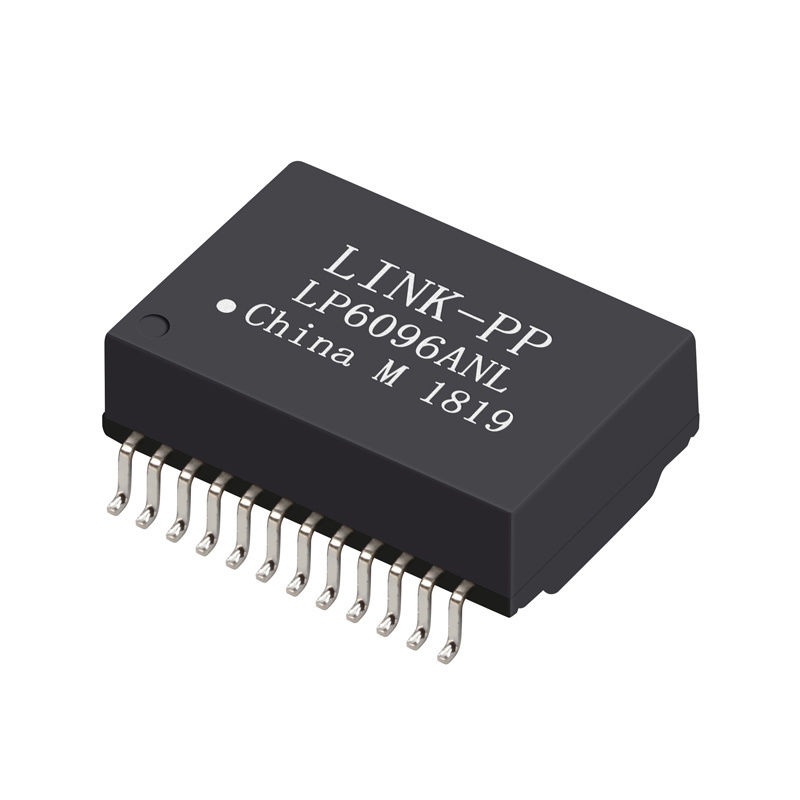

LP6096ANL Gigabit Ethernet Transformer PoE+ Magnetics SMD 24 PIN

Key Benefits of LP6096ANL Gigabit Transformer

• High Isolation Magnetics: Effective suppression of noise and EMI for cleaner network performance.
• PoE+ Support: Powers devices while providing Gigabit bandwidth, consolidating components for streamlined designs.
• Compact SMT Design: Saves PCB real estate and improves manufacturing throughput.
• Supplier Provenance: Built by LINK-PP, a trusted provider in telecom-grade magnetic components since 1997, certified under ISO, RoHS, UL, and REACH standards.

PoE Ethernet Transformer​ Overview

LP6096ANL is a high-reliability Gigabit Ethernet LAN Transformer designed for 10/100/1000Base-T Ethernet applications.

This single-port transformer features 1:1 turns ratio for both transmitter and receiver, an open-frame construction, and supports PoE+ network environments.

With surface-mount packaging, extended temperature operation from -40°C to +85°C, and automatic MDI/MDI-X compatibility, LP6096ANL is ideal for enterprise networking, industrial Ethernet, and high-performance communication equipment.

Technical Specifications

General Parameters

Electrical Specifications (25℃)

LP6096ANL PoE+ Magnetics​ Drawing-Schematic

Installation & Packaging Information of LP6096ANL Gigabit Ethernet Transformer

• Mounting Method: Surface Mount Technology (SMT)
• Packaging Type: Tape & Reel for automated assembly
• Form Factor: Open-frame LAN transformer

This configuration simplifies high-volume PCB production and ensures consistent soldering reliability.

Frequently Asked Questions (FAQ)

What Ethernet speeds does LP6096ANL support?

Supports 10Mbps, 100Mbps, and 1000Mbps (Gigabit Ethernet).

Is LP6096ANL suitable for PoE applications?

Yes, the transformer is designed for Ethernet interfaces supporting PoE+ environments.

Is this device suitable for industrial networking equipment?

Yes, its -40°C to +85°C operating range makes it suitable for industrial applications.
