Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: HX6098NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Part Number: |
HX6098NL |
Transformer Type: |
Gigabit POE/POE+/POE++ Ethernet |
Turns Ratio: |
1 : 1 Transmitter, 1 : 1 Receiver |
Mounting Type: |
Surface Mount |
Size / Dimension: |
17.53mm L X16.10mm W |
Height - Seated (Max): |
5.840 Mm |
Files Available: |
PDF/3D/ISG/Stp/Step/Datasheet |
Part Number: |
HX6098NL |
Transformer Type: |
Gigabit POE/POE+/POE++ Ethernet |
Turns Ratio: |
1 : 1 Transmitter, 1 : 1 Receiver |
Mounting Type: |
Surface Mount |
Size / Dimension: |
17.53mm L X16.10mm W |
Height - Seated (Max): |
5.840 Mm |
Files Available: |
PDF/3D/ISG/Stp/Step/Datasheet |

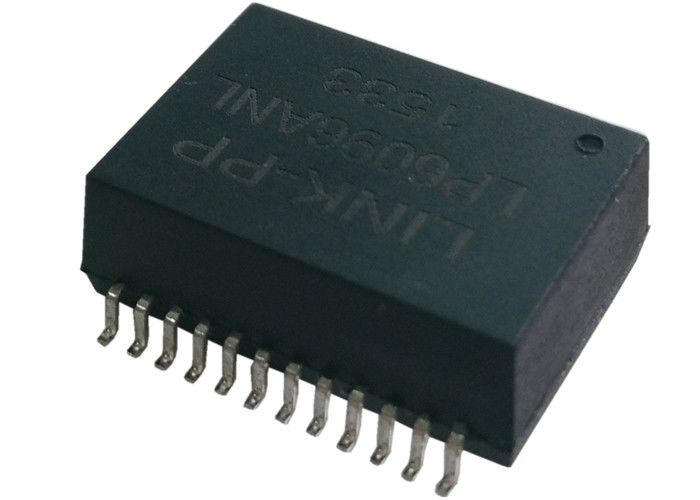

| HX6098NL | Gigabit Transformer | POE+ Magnetics | 1000Base-T POE Transformer |
| Number of ports | Applications | Turns Ratio | Power Over Ethernet |
| 1 | gigabit | 1:1 | POE+ |
| Packaging | Tab Direction | Mounting Type | Contact Finish |
| Reel,Carton | -- | SMT | -- |
| Pins Number | Shielding | Isolation Voltage | LED Color |
| 24 | -- | 1500V | --- |
Detailed Information:
| LINK-PPLP6096ANL 100% CROSS PULSE HX6098NL | |
| LINK-PP Part Number | LP6096ANL |
| Pulse Part Number | HX6098NL |
| Speed | 1000BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (PoE+) |
| Package | SMD |
| Temperature | 0℃ TO +70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 12 |
| Package Height (Inches) | 0.260 |
| Package Height (mm) | 6.60 |
| Package Length (Inches) | 0.715 |
| Package Length (mm) | 18.16 |
| Package Width (Inches) | 0.630 |
| Package Width (mm) | 16.00 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
