Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,RoHS,Reach,ISO
Model Number: H2014NL
Payment & Shipping Terms
Minimum Order Quantity: 400/2000/10K/25K
Price: $0.06-$3.2
Packaging Details: T&R
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Specifications: |
H2014NL |
Rating: |
2x 10/100Base-T Power |
Measure: |
27.81x15.24x7.24mm |
Mounting: |
SMD |
Samples: |
Available |
Temperature: |
0℃ TO +70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |
Specifications: |
H2014NL |
Rating: |
2x 10/100Base-T Power |
Measure: |
27.81x15.24x7.24mm |
Mounting: |
SMD |
Samples: |
Available |
Temperature: |
0℃ TO +70℃ |
Archivi Disponibili: |
PDF/3D/ISG/Stp/Step/Datasheet |

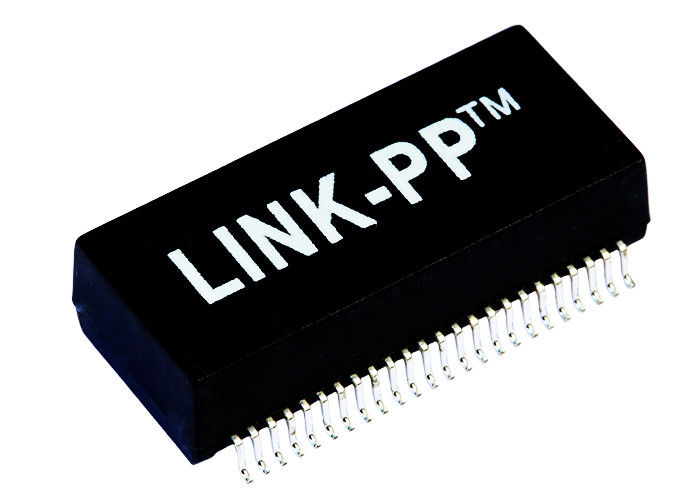

| Pulse H2014NL, LP2014NL | Quad Port POE Transformer | IEEE 802.3af / ANSI 350mA POE |
Detailed Information:
| LINK-PP LP2014NL 100% CROSS PULSE H2014NL | |
| LINK-PP Part Number | LP2014NL |
| Pulse Part Number | H2014NL |
| Speed | 10/100BASE-T |
| Number of Ports | SINGLE |
| Application - LAN | ETHERNET (PoE) |
| Package | SMD |
| Temperature | 0℃ TO +70℃ |
| AutomDX | YES |
| Comment | SAME AS NL VERSION |
| Configuration RX | T,C,S |
| Configuration TX | T,C,S |
| Construction | OPEN FRAME |
| Cores Per Port | 16 |
| Package Height (Inches) | 0.282 |
| Package Height (mm) | 7.17 |
| Package Length (Inches) | 1.095 |
| Package Length (mm) | 27.81 |
| Package Width (Inches) | 0.480 |
| Package Width (mm) | 12.19 |
| Turns Ratio RX | 1CT:1CT |
| Turns Ratio TX | 1CT:1CT |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
•ISO 9001:2008
•UL Certification
•Reach Cetitifaction
•RoHS Compliance
•Active Environmental Policy
100% Guarantee Qualtiy
•Manufactured Under Strict Controls.
•100% Tested (Not Just Batch Tested)
•LINK-PP Is OEM Of TE (Tyco) For 9 Years
•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)
•Quality Guarantee:6 Years
Competitive Price And Service
•More Competitive Price Than Pulse Tyco Halo And Amphenol
•Delivery Time:2-3 Weeks After Orders
•Free Samples Are Available
•Provide New Design For Customer Requirements
•90% Off Shipping Cost By DHL UPS DEDEX Or TNT
LINK-PP Corporate Policy
•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• LINK-PP Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services
| Pulse H2014NL Quad Port PoE 10/100BASE-TX Power Over Ethernet VoIP Magnetics | |||
|---|---|---|---|
| H2014NL | PG4P219AN-2 LF | GST5009-E LF | VP2006AM |
| VP2006AM | HG5PNX LF | GST5009H LF | TS6121CX |
| H4P041RNX LF | LFE8659 | TG110-050N5RL | TS6121K |
| HG2PM109N LF | BCM-5855CI LF | G4P109 LF | LFE8659 |
| 40SS1040AXM2 HF | VP2006AM | VP2006AM | VP2006AM |
| 40SS1041A HF | 4S1070 HF | LFE8659 | TS8121CX |
| 40SS1041AX HF | 4S1142 HF | GOP109 LF | S5833H LF |
| 40SS1041RX HF | 4S1344M1 LF | TG110-050N5RL | 12ST0020P LF |
| LFE8659 | LFE8659 | GP5409 LF | 12ST0022P LF |
| 40SS1140AX1 HF | S6800 LF | GP5419NY LF | 12ST0022PF LF |
| TG110-050N5RL | S1188M HF | TG110-050N5RL | TG110-050N5RL |
| VP2006AM | S5498 LF | GP5419R LF | LFE8659 |
| 40ss1041AXM HF | S5612 LF | VP2006AM | 24SH10410 H |
