LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e

China LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e supplier
LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e supplier LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e supplier LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e supplier LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e supplier

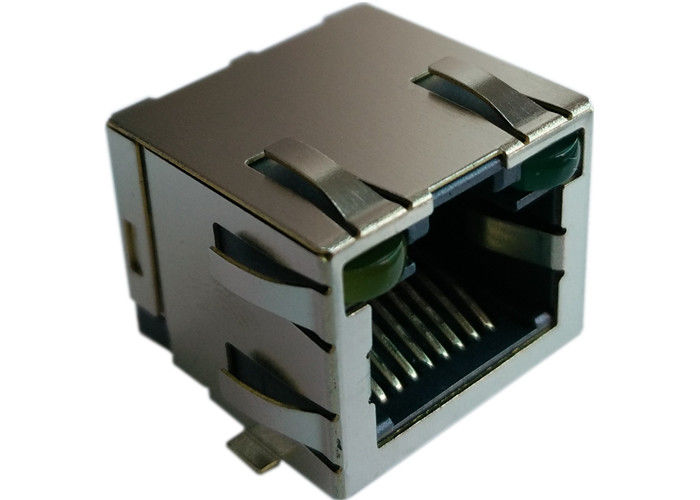

Large Image :  LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH
Model Number: LPJES101XAGNL

Payment & Shipping Terms:

Minimum Order Quantity: 1200
Price: Supportive&Competitive
Packaging Details: 200PCS/Reel,6Reels/Carton,1200PCS/Carton.Size-42x41x35mm,Weight12KG
Delivery Time: Stock or 4 weeks
Payment Terms: TT,Paypal,West Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Specifications: LPJES101XAGNL Samples: Available
Original Munafactuer: LINK-PP Application: Cat5/5e
Termination: Solder LEDs: Green/Yellow Optional

PJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e


LPJES101XAWNL
LPJES101XBGNL
LPJES101XCNL
LPJES101XDNL
LPJES101XNGNL

LINK-PP Surface Mount Rj45 Connector    SMT FASTJack Right Angle.
SMD Rj45 Connector    SMT Jack SMT Rj45 Jack    SMT MAGJack SMT Rj45 Vertical
SMT Modular Jack Rj45 Connector SMT Rj45 Connector SMD    SMT Rj45 Connector Smd POE Rj45





LPJES101XAGNL / LPJES1013AGNL / LPJES1011AGNL / LPJES1012AGNL

Electrical:
1.Voltage rating : 125 VAC RMS
2.Current Rating : 1.5 AMP
3.Contact resistance : 20 mΩ Max
4.Insulation resistance : 1000 MΩ Min @500V DC
5.Dielectric strength : 1000 VAC RMS 50Hz,1MIN.
MECHANICAL:
1.Housing & Insert Material : PBT UL94V-0.
2.Contact Material : Phospor bronze T=0.30mm
3.Plating :Gold Plating OVER nickel,
Gold plated on content area 3U"
4.Operating Life : 750 Cycles Min.
LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e
ENVIRONMENTAL:
1.Storage : -40℃ ~ +85℃
2.Operation : -40℃ ~ +85℃.
3.Wave solder temperature : 265℃ 5 Sec MAX

Gold Plating:
1.5U;3U;6U;16U;30U;
LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e





LPJES101XAGNL SMT RJ45 Connector Pin-In-Past Soldering Surface Mounting Cat5/5e
