Product Details
Place of Origin: Guangdong,China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJC02-111008B
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 250000-320000/Month
Specification: |
ARJC02-111008B |
Analogue: |
LPJ0012GDNL |
Samples: |
Free |
Application: |
10/100B |
Termination: |
Solder |
Type: |
DIP / Side Entry |
Specification: |
ARJC02-111008B |
Analogue: |
LPJ0012GDNL |
Samples: |
Free |
Application: |
10/100B |
Termination: |
Solder |
Type: |
DIP / Side Entry |

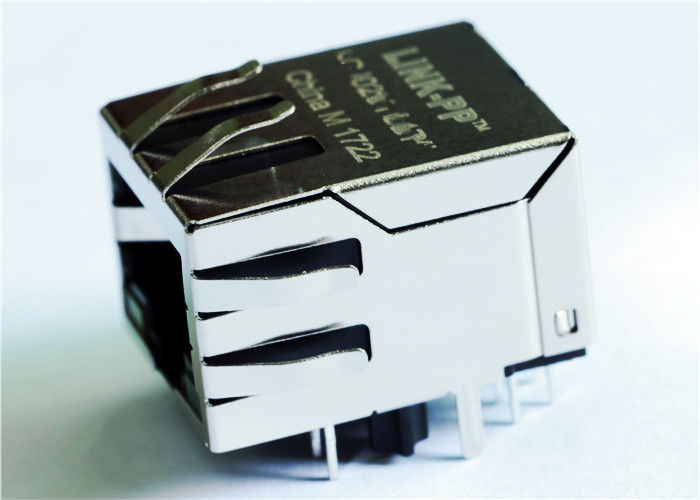

| ARJC02-111008B | RJ45 Single Port | 10/100 Base-Tx | RJ45 with LED |
Pin to Pin with ARJC02-111008B Analogue Alternate
• Compliant with IEEE802.3 standard LPJ0012GDNL
• 350uH minimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• High reliability – 750 mating/unmating cycles
• Designed for most leading PHY IC manufacturers such as Broadcom,Marvell, Microsemi.
• Supports 10/100 Base-Tapplications
• Provides signal conditioning, EMI suppression and signal isolation.
Operating temperature range: 0ºC to +70ºC
Storage temperature range: -25ºC to+85ºC
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
| ARJC02-111008B RJ45 Single Port 10/100 Base-Tx Tap Down RJ45 with LED | ||
|---|---|---|
| ARJC02-111008B | ARJC02-111008B | ARJ11C-MBSAU- A-B-xMU2 |
| ARJ11A-MASL-QU2 | ARJC02-111009D | ARJ11C-MCSAT- A-B-xMU2 |
| ARJ11A-MASM-RT2 | ARJC07-111071A | ARJ11C-MASAA- B-A-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- B-A-xMU2 |
| ARJ11A-MDSO-MU2 | ARJC02-111008B | ARJ11C-MASAD- A-A-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJ11D-MCSA-LU2 |
| ARJ11B-MASAI-MU2 | ARJE-0028 | ARJ11D-MASB-B-A-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJE-0029 | ARJ11D-MCSC-LU2 |
| ARJ11B-MASAM-MU2 | ARJC02-111006K | ARJ11D-MDSD-A-B-XLT2 |
| ARJ11B-MASAN-LU2 | ARJC02-111008B | ARJ11D-MCSD-LT2 |
| ARJ11B-MASBF-LU2 | ARJE-0032 | ARJ11D-MDSE-A-B-XMU2 |
| ARJ11B-MESCB-A-B-ELT2 | ARJC02-111006K | ARJ11D-MASE-A-B-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-B-A-EMU2 | ARJ11D-MDSG-B-A-XMU2 |
| ARJ11B-MBSCB-A-B-ELT2 | ARJP11A-MASA-B-A-FMU2 | ARJ11D-MASG-B-A-XMU2 |
| ARJ11B-MDSBQ-MU2 | ARJP11A-MBSB-A-B-EMU2 | ARJ11D-MASG-A-A-XMU2 |
| ARJ11B-MESBQ-A-B-EMU2 | ARJP11A-MBSB-A-B-FMU2 | ARJC02-111008B |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-B-A-EMU2 | ARJ11D-MDSH-A-B-XLU2 |
| ARJ11B-MBSBQ-A-B-EMU2 | ARJP11B-MBSB-A-B-EMU2 | ARJ11D-MASH-B-A-XLU2 |
| ARJ11B-MFSBQ-A-A-EMU2 | ARJP11C-MASA-A-B-EMU2 | ARJ11D-MBSJ-A-DA-HLT2 |
| ARJ11B-MASAJ-MU2 | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | ARJP11C-MBSC-LT2 | ARJ11D-MBSL-A-DA-HLU2 |
ARJC02-111008B RJ45 Single Port 10/100 Base-Tx Tap Down RJ45 with LED
