Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJE-0027
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
ARJE-0027 |
Mass Production: |
LPJXXXXNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100/1000Base-T |
Termination: |
Solder |
Type: |
DIP / Side Entry |
Part Number: |
ARJE-0027 |
Mass Production: |
LPJXXXXNL |
Original Munafactuer: |
LINK-PP |
Application: |
10/100/1000Base-T |
Termination: |
Solder |
Type: |
DIP / Side Entry |

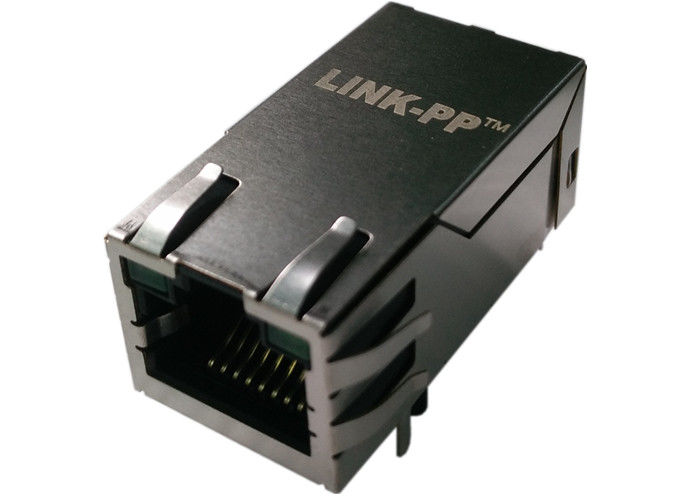

| ARJE-0027 | RJ45 Single Port | 10/100/1000Base-T | Gigabit RJ45 With LED |
• Compliant with IEEE802.3ab standard
• 350uH minimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• High reliability – 750 mating/unmating cycles
• Designed for Marvell 88E1119R Gigabit Ethernet transceiver device
• Supports 10/100/1000 Base-Tapplications
• Provides signal conditioning, EMI suppression and signal isolation
ELECTRICAL SPECFICATIONS: @25℃
1.Inductance: 350uH Min
@ 100KHz,0.1V,8mA DC BIAS
2.Turns Ratio(±2%):
TX=1CT:1 RX=1CT:1
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
1-30MHz:-18dB Min
30-60MHz:-16dB Min
60-80MHz:-12dB Min
80-100MHz:-10dB Min
5.Crosstalk:
1-100MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.HI-POT:1500Vrms Min @60Hz
8.Operating Temperature Range: 0℃ TO 70℃ / -40℃ To 85℃
