Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJE-0028
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4600K.PCS/Month
Part Number: |
ARJE-0028 |
Mass Production: |
LPJXXXXNL |
Original Munafactuer: |
LINK-PP |
Ethernet: |
10/100Base-T |
Termination: |
Soldering |
Hi-pot: |
1500V |
Part Number: |
ARJE-0028 |
Mass Production: |
LPJXXXXNL |
Original Munafactuer: |
LINK-PP |
Ethernet: |
10/100Base-T |
Termination: |
Soldering |
Hi-pot: |
1500V |

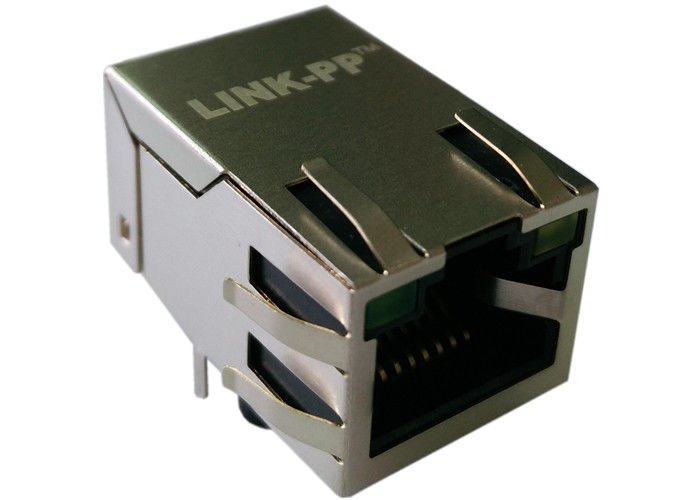

| ARJE-0028 | RJ45 Single Port | 10/100Base-T | RJ45 With LED |
• Designed for most leading PHY IC manufacturers such as Broadcom,Marvell, Microsemi.
• Compliant with IEEE802.3 standard
• 350uH minimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• High reliability – 750 mating/unmating cycles
• Supports 10/100 Base-TX applications
• Provides signal conditioning, EMI suppression and signal isolation.
ELECTRICAL SPECFICATIONS: @25℃
1.Inductance:
350uH Min
@ 100KHz,0.1V,8mA DC BIAS
2.Turns Ratio(±2%):
TX=1CT:1
RX=1CT:1
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
1-30MHz:-18dB Min
30-60MHz:-16dB Min 60-80MHz:-12dB Min
80-100MHz:-10dB Min
5.Crosstalk:
1-100MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.HI-POT:1500Vrms Min @60Hz
8.Operating Temperature Range:
0℃ TO 70℃ / -40℃ To 85℃
| ARJE-0028 Magnetic Rj45 With Integrated 10/100Base-T Connectors With LED | ||
|---|---|---|
| ARJC01-111002T | ARJC02-111008B | ARJ11C-MBSAU- A-B-xMU2 |
| ARJ11A-MASL-QU2 | ARJC02-111009D | ARJ11C-MCSAT- A-B-xMU2 |
| ARJ11A-MASM-RT2 | ARJE-0028 | ARJ11C-MASAA- B-A-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- B-A-xMU2 |
| ARJE-0026 | ARJE-0026 | ARJ11C-MASAD- A-A-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJC01-111002AR |
| ARJ11B-MASAI-MU2 | ARJC01-111002AR | ARJ11D-MASB-B-A-XMU2 |
| ARJE-0026 | ARJE-0028 | ARJE-0026 |
| ARJ11B-MASAM-MU2 | ARJC02-111006K | ARJ11D-MDSD-A-B-XLT2 |
| ARJ11B-MASAN-LU2 | ARJE-0026 | ARJ11D-MCSD-LT2 |
| ARJ11B-MASBF-LU2 | ARJC01-111002AR | ARJ11D-MDSE-A-B-XMU2 |
| ARJC01-111002L | ARJC01-111002L | ARJ11D-MASE-A-B-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-B-A-EMU2 | ARJ11D-MDSG-B-A-XMU2 |
| ARJE-0028 | ARJP11A-MASA-B-A-FMU2 | ARJE-0028 |
| ARJC01-111002AR | ARJP11A-MBSB-A-B-EMU2 | ARJ11D-MASG-A-A-XMU2 |
| ARJ11B-MESBQ-A-B-EMU2 | ARJC02-111006E | ARJC01-111002AR |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-B-A-EMU2 | ARJ11D-MDSH-A-B-XLU2 |
| ARJE-0026 | ARJE-0028 | ARJ11D-MASH-B-A-XLU2 |
| ARJ11B-MFSBQ-A-A-EMU2 | ARJP11C-MASA-A-B-EMU2 | ARJ11D-MBSJ-A-DA-HLT2 |
| ARJC01-111002T | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | ARJC02-111006E | ARJ11D-MBSL-A-DA-HLU2 |
ARJE-0028 Magnetic Rj45 With Integrated 10/100Base-T Connectors With LED
