Product Details
Place of Origin: China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11B-MASAJ-MU2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.05-$1.28
Packaging Details: 50pcs/tray,1200pcs/carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 4200K-PCS/Month
Part Number: |
ARJ11B-MASAJ-MU2 |
LED: |
W / Wo |
Original Munafactuer: |
LINK-PP |
Ethernet: |
Fast 10/100 |
Family: |
Integrated Magnetics Rj45 |
Type: |
RJ45 Modular Jack |
Part Number: |
ARJ11B-MASAJ-MU2 |
LED: |
W / Wo |
Original Munafactuer: |
LINK-PP |
Ethernet: |
Fast 10/100 |
Family: |
Integrated Magnetics Rj45 |
Type: |
RJ45 Modular Jack |
| RJ45 Modular Jack | ARJ11B-MASAJ-MU2 | 10/100 Base-Tx | Single Port Rj45 |
ELECTRICAL SPECFICATIONS: @25℃
ARJ11B-MASAJ-MU2 Price/PDF/Specifications/Cross.
Provides signal conditioning, EMI suppression and signal isolation.
1.Turn Ratio; TX=1CT∶1CT RX=1CT∶1CT
2.Inductance OCL: 350uH MIN
@100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz -15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz
5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz -30dB MIN @ 100MHz
6.Hipot: 1500Vrms
7.Operating Temperature Range:
0℃ TO 70℃ / -40℃ To 85℃
• Designed for most leading PHY IC manufacturers such as Broadcom, Marvell, Microsemi.
• Supports 10/100 Base-Tapplications
| RJ45 Modular Jack ARJ11B-MASAJ-MU2 Integrated Magnetics Rj45 Connector Fast Lan | ||
|---|---|---|
| ARJ11B-MASAJ-MU2 | ARJC02-111008B | RJ45 Modular Jack |
| ARJ11A-MASL-QU2 | ARJ11B-MASAI-MU2 | ARJ11C-MCSAT- A-B-xMU2 |
| ARJ11A-MASM-RT2 | ARJC07-111071A | ARJ11C-MASAA- B-A-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- B-A-xMU2 |
| ARJ11B-MASAI-MU2 | ARJC02-111008B | ARJ11C-MASAD- A-A-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJ11B-MASAI-MU2 |
| ARJ11B-MASAI-MU2 | ARJ11B-MASAI-MU2 | ARJ11D-MASB-B-A-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJ11B-MASAA-MU2 | ARJ11D-MCSC-LU2 |
| ARJ11B-MASAM-MU2 | ARJ11B-MASAI-MU2 | ARJ11D-MDSD-A-B-XLT2 |
| ARJ11B-MASAN-LU2 | ARJC02-111008B | ARJ11B-MASAJ-MU2 |
| ARJ11B-MASAJ-MU2 | ARJ11B-MASAA-MU2 | ARJ11D-MDSE-A-B-XMU2 |
| ARJ11B-MESCB-A-B-ELT2 | ARJ11B-MASAJ-MU2 | ARJ11D-MASE-A-B-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-B-A-EMU2 | ARJ11B-MASAA-MU2 |
| ARJ11B-MBSCB-A-B-ELT2 | ARJP11A-MASA-B-A-FMU2 | ARJ11D-MASG-B-A-XMU2 |
| ARJ11B-MASAA-MU2 | ARJP11A-MBSB-A-B-EMU2 | ARJ11D-MASG-A-A-XMU2 |
| ARJ11B-MESBQ-A-B-EMU2 | ARJ11B-MASAI-MU2 | ARJ11B-MASAJ-MU2 |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-B-A-EMU2 | ARJ11D-MDSH-A-B-XLU2 |
| ARJ11B-MBSBQ-A-B-EMU2 | ARJP11B-MBSB-A-B-EMU2 | ARJ11D-MASH-B-A-XLU2 |
| ARJ11B-MFSBQ-A-A-EMU2 | ARJP11C-MASA-A-B-EMU2 | ARJ11D-MBSJ-A-DA-HLT2 |
| ARJ11B-MASAJ-MU2 | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | ARJ11B-MASAJ-MU2 | ARJ11D-MBSL-A-DA-HLU2 |

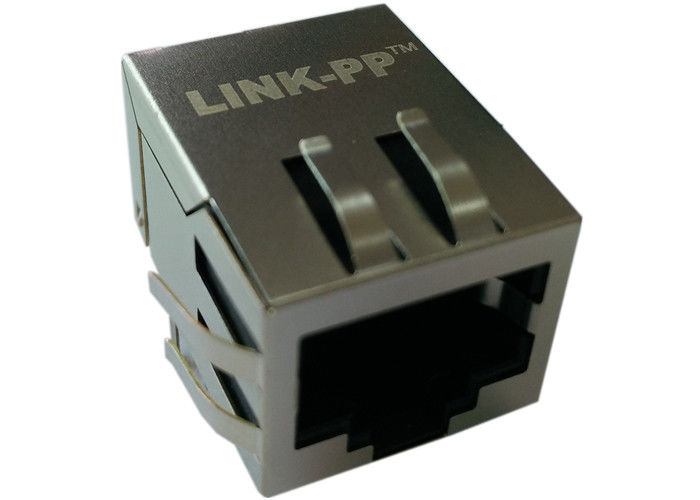

RJ45 Modular Jack ARJ11B-MASAJ-MU2 Integrated Magnetics Rj45 Connector Fast Lan
ARJ11B-MASAJ-MU2 RJ45 Modular Jack
