| Part Number: | ARJ11C-MBSAT-A-B-4MU2 | Latch: | Tab-Up |
|---|---|---|---|
| Original Munafactuer: | LINK-PP | Ethernet: | 10/100/1000 Gigabit |
| Family: | PCB 10pin Rj45 | Type: | Magnetic RJ45 Jack |
| Highlight: | stacked rj45 connectors,rj45 magnetic jack |
||

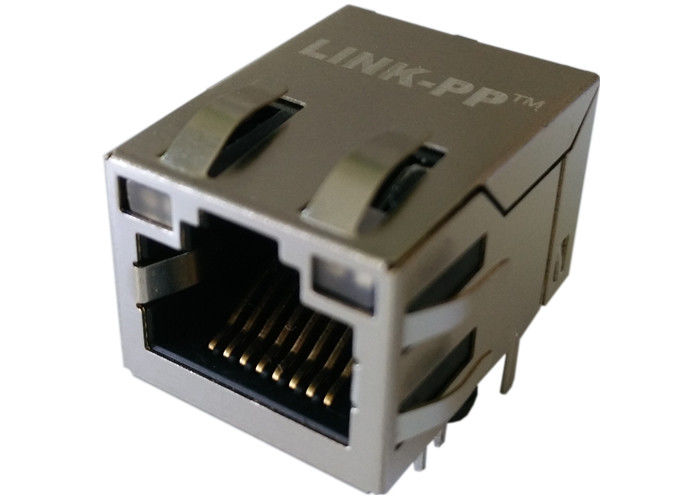

| ARJ11C-MBSAT-A-B-4MU2 | Magnetic RJ45 Jack | 10/100/1000 Base-T | Angled Rj45 Connector |
ELECTRICAL SPECFICATIONS: @25℃
ARJ11C-MBSAT-A-B-4MU2 Price/PDF/Specifications/Cross.
1.Turns Ratio(±2%):
TX=1CT:1CT RX=1CT:1CT
2.Insertion Loss:
0.1-0.9MHz: -1.0dB Max 0.9-100MHz: -1.1dB Max
3.Return Loss(dB Min):
0.1-15MHz:-18 15-60MHz:-16 60-80MHz:-15 80-100MHz:-12
4.Crosstalk(dB Min):
0.1-0.9MHz:-43 1-15MHz:-35 15-30MHz:-26 30-100MHz:-24
5.CMR(dB Min):
0.1-30MHz:-46 30-100MHz:-42
6.Isolation Voltage: 1500Vrms
7.Operating Temperature Range:
0℃ TO 70℃ / -40℃ To 85℃
NOTES:
1.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
2 .Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
3.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
4.Meets IEEE 802.3 specification
