Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: ARJ11E-MBSA-A-B-EM2
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000
Price: Supportive & Competitive
Packaging Details: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 9 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
ARJ11E-MBSA-A-B-EM2 |
Mass Production: |
LPJXXNL |
Original Munafactuer: |
LINK-PP |
Ethernet: |
1000M |
Family: |
Rj45 With Magnetics |
Type: |
Lan Connectors Rj45 |
Part Number: |
ARJ11E-MBSA-A-B-EM2 |
Mass Production: |
LPJXXNL |
Original Munafactuer: |
LINK-PP |
Ethernet: |
1000M |
Family: |
Rj45 With Magnetics |
Type: |
Lan Connectors Rj45 |
| ARJ11D-MASB-B-A-FMU2 | Rj45 Female jack | 10/100 Base-T | RJ45 Single Port |
ELECTRICAL SPECFICATIONS: @25℃
ARJ11E-MBSA-A-B-EM2 Price/PDF/Specifications/Cross.
Connector Materials
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
1.TR:(100KHZ,100mV);
TX=1CT:1CT ±3% RX=1CT:1CT ±3%P2.LX:(100KHZ,100mV,8mA,DC Bias)
3.HIPOT:
PINS(P1,P2,P3)TO (J1,J2)=1500V
PINS(P4,P5,P6)TO (J3,J6)=1500V
4.INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
-20dB MIN @ 1MHz TO 10MHz
-16dB MIN @ 10MHz TO 30MHz
-12dB MIN @ 30MHz TO 60MHz
-10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
-40dB MIN @ 1MHz TO 30MHz
-35dB MIN @ 30MHz TO 60MHz
-30dB MIN @ 60MHz TO 100MHz
7.Operating Temperature Range: 0℃ TO 70℃ / -40℃ To 85℃
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
4.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
| ARJ11E-MBSA-A-B-EM2 RJ45 With Integrated Magnetics 1000 Base-TX Module | ||
|---|---|---|
| ARJ11E-MBSA-A-B-EM2 | ARJC02-111008B | Magnetic RJ45 Jack |
| ARJ11A-MASL-QU2 | ARJ11D-MASB-B-A-FMU2 | ARJ11C-MCSAT- A-B-xMU2 |
| ARJ11A-MASM-RT2 | ARJ11C-MBSAT-A-B-3MU2 | ARJ11C-MASAA- B-A-xLU2 |
| ARJ11D-MASB-B-A-EMU2 | ARJ11C-MBSAT-A-B-4MU2 | ARJ11C-MASAB- B-A-xMU2 |
| ARJ11B-MASAI-MU2 | ARJ11C-MBSAS-A-BA-7MU2 | ARJ11C-MASAD- A-A-xMU2 |
| ARJ11B-MASAA-MU2 | ARJ11E-MBSA-A-B-EM2 | ARJ11D-MCSA-LU2 |
| ARJ11E-MBSA-A-B-EM2 | ARJ11B-MASAI-MU2 | ARJ11D-MASB-B-A-XMU2 |
| ARJ11B-MASAJ-MU2 | ARJ11B-MASAA-MU2 | ARJ11C-MBSAT-A-B-4MU2 |
| ARJ11B-MASAM-MU2 | ARJ11D-MASB-B-A-FMU2 | ARJ11D-MASB-B-A-EMU2 |
| ARJ11D-MASB-B-A-EMU2 | ARJ11C-MBSAT-A-B-4MU2 | ARJ11C-MBSAS-A-BA-7MU2 |
| ARJ11D-MASB-B-A-EMU2 | ARJ11D-MCSA-LU2 | ARJ11D-MDSE-A-B-XMU2 |
| ARJ11B-MESCB-A-B-ELT2 | ARJ11C-MBSAT-A-B-4MU2 | ARJ11D-MASE-A-B-XMU2 |
| ARJ11C-MBSAT-A-B-4MU2 | ARJP11A-MASA-B-A-EMU2 | ARJ11E-MBSA-A-B-EM2 |
| ARJ11E-MBSA-A-B-EM2 | ARJ11C-MBSAT-A-B-3MU2 | ARJ11D-MASG-B-A-XMU2 |
| ARJ11C-MBSAS-A-BA-7MU2 | ARJP11A-MBSB-A-B-EMU2 | ARJ11D-MASG-A-A-XMU2 |
| ARJ11B-MESBQ-A-B-EMU2 | ARJ11C-MBSAS-A-BA-7MU2 | ARJ11D-MASB-B-A-EMU2 |
| ARJ11B-MASBQ-MU2 | ARJ11D-MCSA-LU2 | ARJ11D-MDSH-A-B-XLU2 |
| ARJ11B-MBSBQ-A-B-EMU2 | ARJP11B-MBSB-A-B-EMU2 | ARJ11C-MBSAT-A-B-4MU2 |
| ARJ11B-MFSBQ-A-A-EMU2 | ARJP11C-MASA-A-B-EMU2 | ARJ11D-MBSJ-A-DA-HLT2 |
| ARJ11B-MASAM-MU2 | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11C-MBSAT-A-B-3MU2 | ARJ11B-MASAJ-MU2 | ARJ11D-MBSL-A-DA-HLU2 |

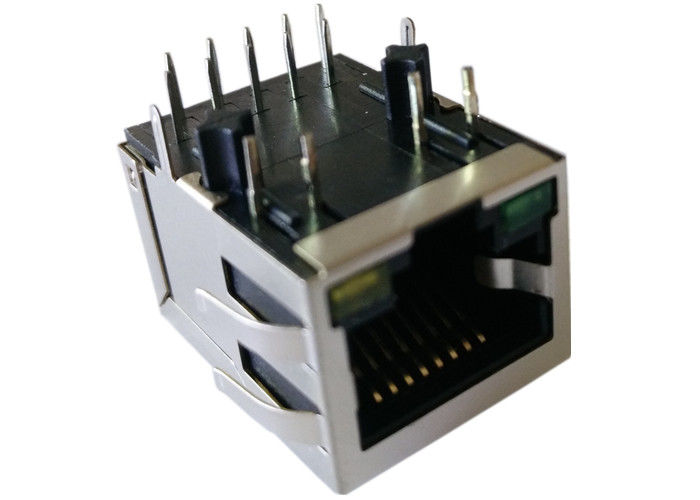

ARJ11E-MBSA-A-B-EM2 RJ45 With Integrated Magnetics 1000 Base-TX Module
ARJ11E-MBSA-A-B-EM2 RJ45 Single Port
