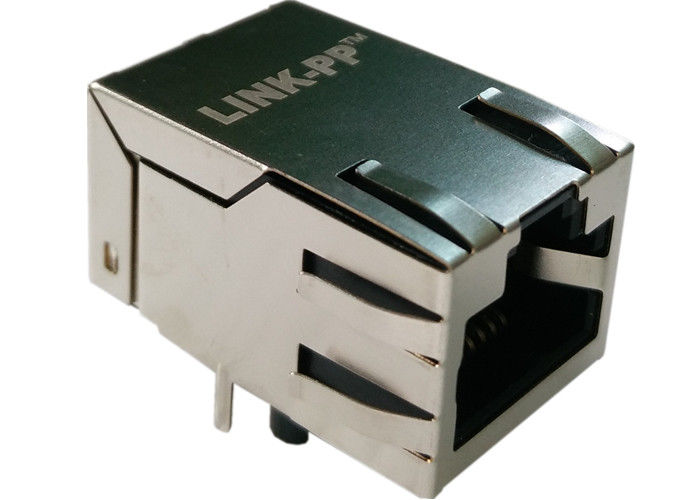

RJ45 Modular Jack RJMG163007101NR Right Angle Ethernet Connector 10/100M

Product Details

Place of Origin: China

Brand Name: LINK-PP

Certification: UL,ROHS,Reach,ISO

Model Number: RJMG163007101NR

Payment & Shipping Terms

Minimum Order Quantity: 50/500/1000/25K

Price: $0.05-$1.28

Packaging Details: 50pcs/tray,1200pcs/carton

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 4200K-PCS/Month

Get Best Price
Highlight:

rj-45 ethernet jack

,

modular jacks rj45

Part Number:
RJMG163007101NR
Mass Production:
SM-LPJ2030CNL
Original Munafactuer:
LINK-PP
Ethernet:
10/100Mbps Interface
Family:
Modular Rj45 Connectors
Samples:
Available Free
Part Number:
RJMG163007101NR
Mass Production:
SM-LPJ2030CNL
Original Munafactuer:
LINK-PP
Ethernet:
10/100Mbps Interface
Family:
Modular Rj45 Connectors
Samples:
Available Free
RJ45 Modular Jack RJMG163007101NR Right Angle Ethernet Connector 10/100M

RJ45 Modular Jack RJMG163007101NR Right Angle Ethernet Connector 10/100M


RJMG163007101NR Modular Rj45 Connectors 10/100 Base-T RJ45 Modular Jack


ELECTRICAL SPECFICATIONS: @25℃
RJMG163008101NR Price/PDF/Specifications/Cross.

1.TR:(100KHZ,100mV);
  TX=1CT:1CT ±3%     RX=1CT:1CT ±3%P2.LX:(100KHZ,100mV,8mA,DC Bias)
  PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
  PINS(P1,P2,P3)TO (J1,J2)=1500V
  PINS(P4,P5,P6)TO (J3,J6)=1500V
4.INSERTION LOSS:
  -1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
  -20dB MIN @ 1MHz TO 10MHz
  -16dB MIN @ 10MHz TO 30MHz
  -12dB MIN @ 30MHz TO 60MHz
  -10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
  -40dB MIN @ 1MHz TO 30MHz
  -35dB MIN @ 30MHz TO 60MHz
  -30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
  -30dB MIN @1MHz TO 50MHz
  -20dB MIN @50MHz TO 150MHz
8.Operating Temperature Range: 0℃ TO 70℃ / -40℃ To 85℃

NOTES:
1.Designed to support application,such as SOHO(ADSL
   modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
  Housing:Thermoplastic UL94V-0
  Contact/Shield: Copper alloy
  Shield plating: Nickel
  Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
   Wave solder tip temperature time: 5 Sec Max

RJMG163008101NR RJ45 Modular Jack Rjmag 10/100, Single Port No Leds
