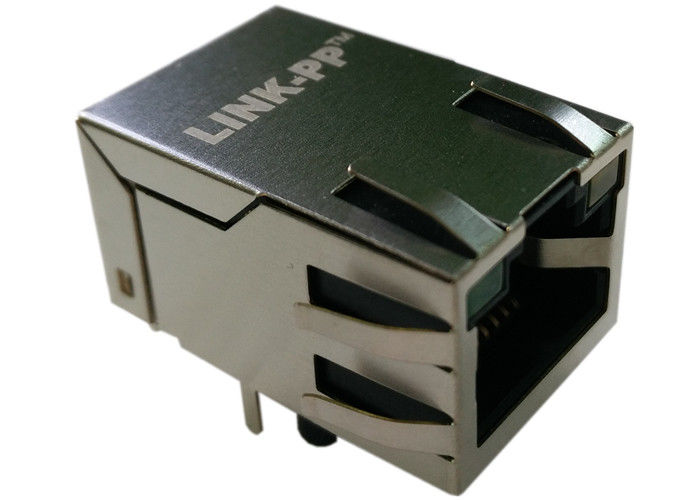

RJ45 With Integrated Magnetics RJMG163127101NR Rjmag 10/100, Single Port

China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
China LINK-PP INT'L TECHNOLOGY CO., LIMITED certification
WOW , 100% Tested ,Zero Defective

—— TI

LINK-PP is Our Best Supplier in China

—— Intel

Thanks a Lot For Supplying Excellent RJ45 And Transformer ,LINK-PP Deserve the Consideration Worldwidely

—— Cisco

LINK-PP is Flex type A Vendor For All RJ45 Connector and Transformer

—— Flextronics

I'm Online Chat Now

RJ45 With Integrated Magnetics RJMG163127101NR Rjmag 10/100, Single Port

RJ45 With Integrated Magnetics RJMG163127101NR Rjmag 10/100, Single Port
RJ45 With Integrated Magnetics RJMG163127101NR Rjmag 10/100, Single Port

Large Image :  RJ45 With Integrated Magnetics RJMG163127101NR Rjmag 10/100, Single Port

Product Details:
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: UL,ROHS,Reach,ISO
Model Number: RJMG163127101NR
Payment & Shipping Terms:
Minimum Order Quantity: 50/500/1000
Price: Negotiate & Target & Competitive
Packaging Details: 60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Detailed Product Description
Part Number: RJMG163127101NR Connector Type: RJ45 8PINs
Rating: 10/100Mbps Mounting Type: Through Hole
Orientation: 90~ Angle (Right) Termination: Soldering
Shielding: Shielded, EMI Finger
Highlight:

stacked rj45 connectors

,

rj45 magnetic jack

RJ45 With Integrated Magnetics RJMG163127101NR Rjmag 10/100, Single Port


RJMG163127101NR

RJ45 With Integrated Magnetics

Rj-45 With Led

Rj45 Integrated 10/100 Lan

RJMG163127101NR Specifications / datasheets / PDF / Cross/ replacement/Price



TEST NOTES(25±5℃)

   RJMG163127101NR
1.TR:(100KHz,100mV);
  TX=1CT∶1CT ±3%     RX=1CT∶1CT ±3%

2.LX:(100KHz,100mV,8mA,DC Bias)
  PINS:(P1,P3),(P4,P6)=350uH MIN
3.HIPOT:
  PINS(P1,P2,P3)TO (J1,J2)=1500Vrms
  PINS(P4,P5,P6)TO (J3,J6)=1500Vrms
4.INSERTION LOSS:
  -1.0dB MAX @ 1.0MHz TO 65MHz
5.RETURN LOSS:
  -20dB MIN @ 1MHz TO 10MHz
  -16dB MIN @ 10MHz TO 29MHz
  -12dB MIN @ 30MHz TO 61MHz
  -10dB MIN @ 60MHz TO 100MHz
6.CROSS TALK:
  -40dB MIN @ 1MHz TO 30MHz
  -35dB MIN @ 30MHz TO 60MHz
  -30dB MIN @ 60MHz TO 100MHz
7.COMMON TO COMMON MODE REJECTION:
  -30dB MIN @1MHz TO 50MHz
  -20dB MIN @50MHz TO 150MHz
8.Operating Temperature: 0℃~70℃.



RJ45 With Integrated Magnetics RJMG163127101NR Rjmag 10/100, Single Port
RJMG163127101NR RJMG163123101NR  RJMG163127101NR RJMG-6312-81-04
PH162479G PTC111101 RJMG163127101NR RJMG-6315-71-01
RJMG163123101NR  RJMG163127101NR RJMG163123101NR  RJMG63218101
PTC1111-54L1VG RJMG163127101NR 13F-61JGYDPH2NL RJMG-6321-81-01
RJMG163127101NR RJMG163123101NR  PTC1111-54L1VG RJMG63445601
RJMG163123101NR  PTC111145G PTC1111-54L1VG RJMG-7300-31-01
PTC1111-51PG PTC1111-01S RJMG163127101NR RJMG73117101
PTC1111-01SG PTC1111-45L2G RJMG63117102 RJMG-7312-71-01
RJMG221129910NR RJMG-6300-31-01 RJMG63118601 RJMG73128101
RJMG231022610ER RJMG-6300-31-04 RJMG631186A1 RJMG73128601
RJMG231022830ER RJMG-6300-31-08 RJMG6312-71-01 RJMG-7326-71-01
RJMG231022830ER RJMG-6311-71-01 RJMG231116230EL RJMG-B312-71-01
RJMG2310228A0ER RJMG163123101NR  RJMG-6312-81-01 RJMG163448101NR
RJMG1010200A0NR RJMG163127101NR RJMG163123101NR RJMG163623101NR
RJMG1010211A0NR RJMG1-6321-B1-01NR RJMG163127101NR RJMG16412B101ER
RJMG12163226600R RJMG163267101NR RJMG163128101NR RJMG168007101GR
RJMG133218101DR RJMG163268101NR RJMG163213101NR RJMG168008101GR
RJMG163003101NR RJMG163427101NR RJMG163217101NR RJMG168009101GR
RJMG163007101NR RJMG163447101NR RJMG163218101NR RJMG168117101GR
RJMG163008101NR RJMG168129101GR RJMG168217101GR RJMG168118101GR
RJMG163009101NR RJMG163127101NR RJMG168218101GR RJMG168119101GR
RJMG163117101NR RJMG168267101GR RJMG168219101GR RJMG168127101GR



RJ45 With Integrated Magnetics RJMG163127101NR Rjmag 10/100, Single Port



NOTES:
1.Designed to support application,such as SOHO(ADSL
  modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
  Housing: Thermoplastic PBT+30%G.F UL94V-0
  Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
  Pins: Brass C2680R-H  Thickness=0.35mm
  Shield: SUS 201-1/2H  Thickness=0.2mm
  Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
  Wave solder tip temperature time: 5 Sec Max

RJ45 With Integrated Magnetics RJMG163127101NR Rjmag 10/100, Single Port 0
