Product Details
Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: 0826-1X1-GH-F
Payment & Shipping Terms
Minimum Order Quantity: 50/500/1000/25K
Price: $0.09-$1.85
Packaging Details: 50 pcs in 1 tray,24tray in 1 carton, which is 32*30*31 , 9 KGS (1200pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Part Number: |
0826-1X1-GH-F |
Mass Production: |
0826-1X1-GH-F |
Original Munafactuer: |
LINK-PP |
Application: |
10/100/1000Base-T POE+ |
Family: |
Connectors, Interconnects |
Mouting: |
Side Entry POE+ |
Part Number: |
0826-1X1-GH-F |
Mass Production: |
0826-1X1-GH-F |
Original Munafactuer: |
LINK-PP |
Application: |
10/100/1000Base-T POE+ |
Family: |
Connectors, Interconnects |
Mouting: |
Side Entry POE+ |

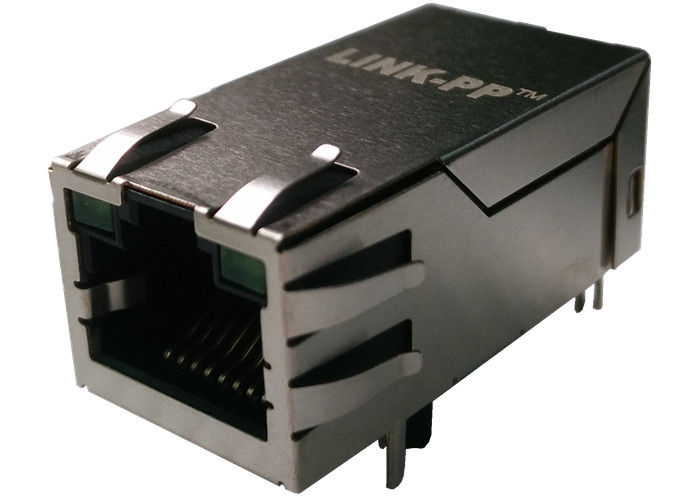

| Bel 0826-1X1-GH-F | Magjack 08261X1TGH-F | Gigabit POE+ | RJ45 Power Over Ethernet+ |
Bel - MagJack Integrated Connector Modules 0826-1X1-GH-F Cross/PDF/datasheet/Price/3D/Cross
10/100/1000 Base-T, AutoMDIX, Power over Ethernet+ (PoE+)
Through Hole Modular Connectors - Jacks With Magnetics
90° Angle (Right)
Green, Orange - Yellow
Shielded, EMI Finger
Electrical Specifications @25℃
1.Inductance: 350uH Min
@ 100KHz,0.1V,8mA DC BIAS
2.Turns Ratio(±2%): 1CT∶1CT
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
1-30MHz:-18dB Min
30-60MHz:-16dB Min
60-80MHz:-12dB Min
80-100MHz:-10dB Min
5.Crosstalk:
1-100MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.Hipot:1500Vrms Min @60Hz
8.Operating Temperature: -40℃～+85℃.
NOTES:
1.Designed to support application,such as SOHO(ADSL
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3at specification
3.Single Port Connector For PoE Applications
4.Connector Materials:
Housing:Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
5.Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
| Bel 0826-1X1-GH-F POE Plus Rj45 Magjack Gigabit Extend IEEE802.3at LPJK6064AONL | ||
|---|---|---|
| 0826-1X1-GH-F | Stewart 08261X1TGH-F | 08261X1TGH-F |
| ARJ11A-MASL-QU2 | ARJC07-111071A | ARJ11C-MCSAT- A-B-xMU2 |
| 08261X1TGH-F | 0826-1X1-GH-F | ARJ11C-MASAA- B-A-xLU2 |
| ARJ11A-MDSN-MU2 | ARJC02-111006K | ARJ11C-MASAB- B-A-xMU2 |
| ARJC07-111071A | ARV11-3824I | ARJ11C-MASAD- A-A-xMU2 |
| ARJ11B-MASAA-MU2 | ARJC02-111006K | ARJC01-111002AR |
| 08261X1TGH-F | ARJC01-111002AR | ARJ11D-MASB-B-A-XMU2 |
| ARJ11B-MASAJ-MU2 | 0826-1X1-GH-F | ARJ11D-MCSC-LU2 |
| HY901184A | ARJC02-111006K | ARJ11D-MDSD-A-B-XLT2 |
| ARJ11B-MASAN-LU2 | 08261X1TGH-F | 08261X1TGHF |
| ARJ11B-MASBF-LU2 | ARJC01-111002AR | ARJ11D-MDSE-A-B-XMU2 |
| 47F-1205GYD2 | 13F-60NDK2NL | ARJ11D-MASE-A-B-XMU2 |
| ARJ11B-MASCB-LT2 | ARJP11A-MASA-B-A-EMU2 | ARJ11D-MDSG-B-A-XMU2 |
| ARJ11B-MBSCB-A-B-ELT2 | 0826-1X1-GH-F | ARJ11D-MASG-B-A-XMU2 |
| HY901184A | ARJP11A-MBSB-A-B-EMU2 | ARJ11D-MASG-A-A-XMU2 |
| ARJ11B-MESBQ-A-B-EMU2 | ARJC02-111006E | ARJC01-111002AR |
| ARJ11B-MASBQ-MU2 | ARJP11B-MASA-B-A-EMU2 | ARJ11D-MDSH-A-B-XLU2 |
| 08261X1TGHF | ARJP11B-MBSB-A-B-EMU2 | ARJ11D-MASH-B-A-XLU2 |
| ARJ11B-MFSBQ-A-A-EMU2 | ARJC07-111071A | ARJ11D-MBSJ-A-DA-HLT2 |
| 0826-1X1-GH-F | ARJP11C-MASB-AB-A-FMU2 | ARJ11D-MBSK-A-DA-HMU2 |
| ARJ11B-MASBR-QU2 | 08261X1TGHF | ARJ11D-MBSL-A-DA-HLU2 |
0826-1X1-GH-F 08261X1TGHF
