LPJ26204AENL Rj45 Dual Port Magjack , 10/100BT Connector Cross Pluse J8064D628ANL

China LPJ26204AENL Rj45 Dual Port Magjack , 10/100BT Connector Cross Pluse J8064D628ANL supplier
LPJ26204AENL Rj45 Dual Port Magjack , 10/100BT Connector Cross Pluse J8064D628ANL supplier LPJ26204AENL Rj45 Dual Port Magjack , 10/100BT Connector Cross Pluse J8064D628ANL supplier

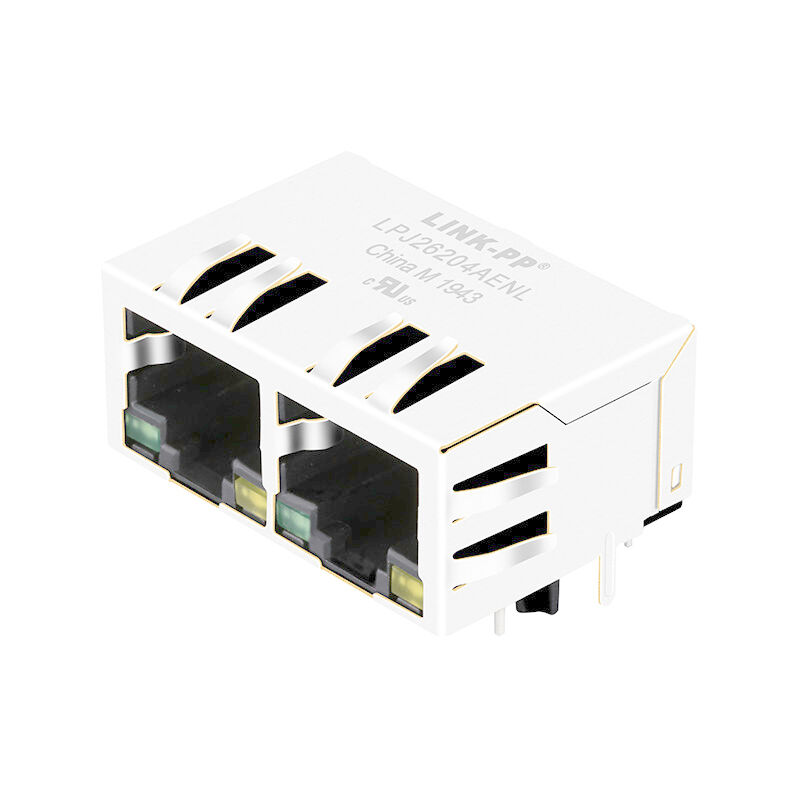

Large Image :  LPJ26204AENL Rj45 Dual Port Magjack , 10/100BT Connector Cross Pluse J8064D628ANL

Product Details:

Place of Origin: GuangDong, China
Brand Name: LINK-PP
Certification: ISO9001,SGS,UL,CE,REACH163
Model Number: LPJ26204AENL

Payment & Shipping Terms:

Minimum Order Quantity: 200 PCS
Price: Supportive & Competitive
Packaging Details: Tray&Carton
Delivery Time: Stock or 3 weeks
Payment Terms: T/T, Paypal,Western Union
Supply Ability: 3000000/Month
Contact Now
Detailed Product Description
Part Number: LPJ26204AENL Cross: J8064D628ANL
Mounting: Through Hole Shielding: Shielded, EMI Finger
Interface: 10/100 Base-TX, AutoMDIX Samples: Free Available

LPJ26204AENL Rj45 Dual Port Magjack , 10/100BT Connector Cross Pluse J8064D628ANL


LINK-PP China LPJ26204AENL = > Pluse J8064D628ANL Jack
Trader Part Number J8064D628ANL
Price Break Unit Price Extended Price
1-2 Free -
10-100 A-09
100-250 B-07
500 C-99
1000 D-j
10,000 Supportive Supportive
50,000 Supportive Supportive
100,000 Supportive Supportive
Brand Pulse Electronics Corporation
Cross Part

LPJ26204AENL

Manufacturer Part Number

LINK-PP China

Description CONN MAGJACK 2PORT 100 BASE-TX
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL) 1 (Unlimited)



Electrical Specifications: @25℃

J8064D628ANL  Dual Rj45 connector With led/Dual Rj45 jack 10/100 Base-TX, AutoMDIX


1.Turns Ratio(±2%):
  TX=1CT:1CT       RX=1CT:1CT
2.Return Loss(dB Min):
  1-10MHz:-18      30MHz:-16
  60-100MHz:-12
3.Crosstalk:
  1-100MHz:-30dB Min
4.Insertion Loss:
  1-100MHz:-1.2dB Max
5.CMR:
  1-50MHz:-30dB Min
  50-130MHz:-20dB Min

7.Isolation Voltage:1500V
8.Operating Temperature Range: 0℃ TO 70℃ / -40℃ To 85℃



NOTES:
1.Pluse J8064D628ANL Designed to support application,such as SOHO(ADSL
  modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
  Housing:Thermoplastic UL94V-0
  Contact/Shield: Copper alloy
  Shield plating: Nickel
  Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max
   Wave solder tip temperature time: 5 Sec Max



LPJ26204AENL Rj45 Dual Port Magjack , 10/100BT Connector Cross Pluse J8064D628ANL

J8064D628ANL

LPJ26204AENL Rj45 Dual Port Magjack , 10/100BT Connector Cross Pluse J8064D628ANL



Plusejack J8064D628ANL
